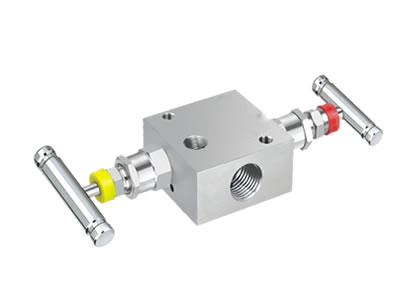

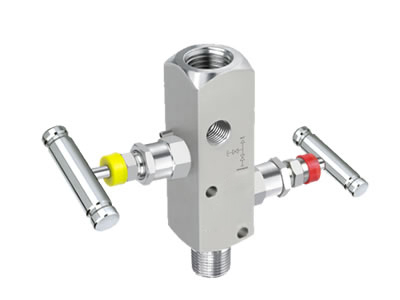

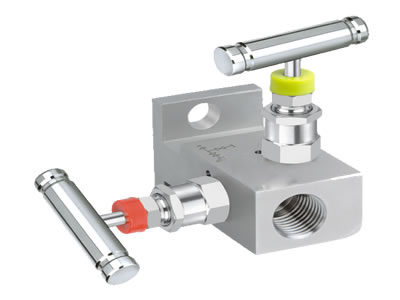

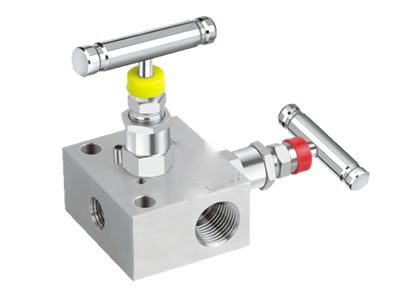

2 VALVE MANIFOLD

  • Venus Engineers 2 Valve manifolds are Designed for connecting impulse lines & transmitters.
  • A convenient method of blocking, bleeding, and calibrating pressure transmitters.
  • Combine the function of a Tee, Calibration Valve, Isolation Valve, all tubings& fittings in a single valve configuration.
  • Standard Process connections : – 1/2″ Female NPT
  • Available with 2, 3 and 5 Valve configurations
  • Available in Pipe to Pipe, Pipe to Flange, Flange to Flange, Direct mount, Integral mount and Base Vent mounting options.
  • Heat Code traceability.
  • All Components are Ultrasonically cleaned prior to assembly.
  • A pneumatic seat test is performed at 1000 PSI with Nitrogen gas.
  • All the Valves are 100% Factory Tested.
  • 3.1 Certificates furnished.

Data Sheet

Type
Model No
Pipe to Pipe 2VM-8-SS-R
Pipe to Flange 2VM-8-SS-T
Flange to Flange 2VM-8-SS-H
Remote Mount 2VM-8-SS-RM
Base Vented 2VM-8-SS-BV
Base Mount 2VM-8-SS-BM
Direct Mount 2VM-8-SS-DM
Integral Mount 2VM-8-SS-IM
