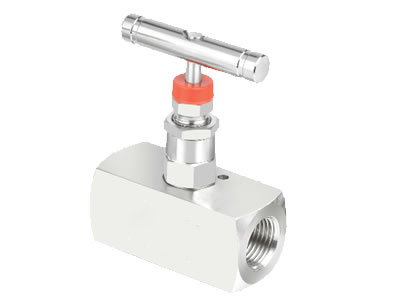

SB SERIES NEEDLE VALVES
Square Body Series
- Bar stock construction.
- Standard Working Pressure 6000 PSI with PTFE packing.
- 10,000, PSI Valves are available on Request.
- Standard NPT End Connections. BSP / BSPT /Double Ferrule/DIN/ JIC Threads available on Request.
- Heat Code traceability.
- All Components are Ultrasonically cleaned prior to assembly.
- Pneumatic seat test is performed at 1000 PSI. Medium – Nitrogen gas.
- Hydrostatic seat test is performed at 1.1 times the working pressure.
- Hydrostatic shell test is performed at 1.5 times the working pressure.
- 100% Factory Tested.
- 3.1 Certificates furnished. 3.2 certificates available on request.
| Hard Seat Needle Valve (Male x Female) | ||||
|---|---|---|---|---|
| Part.No | P(M/F) | L | H-SQUARE | A-OP |
| VE-SB-H-S-04-MF | 1/4" | 60 | 27 | 93.5 |
| VE-SB-H-H-06-MF | 3/8" | 60 | 27 | 93.5 |
| VE-SB-H-S-08-MF | 1/2" | 80 | 32 | 96.5 |
| VE-SB-H-S-M20-MF | M20 X 1.5 | 80 | 32 | 96.5 |
| VE-SB-H-S-12-MF | 3/4" | 95 | 42 | 117 |
| VE-SB-H-S-16-MF | 1" | 100 | 45 | 118 |
| Hard Seat Needle Valve (Female x Female) | ||||
|---|---|---|---|---|
| Part.No. | P(F/F) | L | H-SQUARE | A-OP |
| VE-SB-H-S-04-FF | 1/4" | 55 | 27 | 93.5 |
| VE-SB-H-S-06-FF | 3/8" | 55 | 27 | 93.5 |
| VE-SB-H-S-08-FF | 1/2" | 75 | 32 | 96.5 |
| VE-SB-H-S-M20-FF | M20 X 1.5 | 75 | 32 | 96.5 |
| VE-SB-H-S-12-FF | 3/4" | 80 | 42 | 117 |
| VE-SB-H-S-16-FF | 1" | 95 | 45 | 119 |
| Hard Seat Block & Bleed Valve (Male x Female) | |||||
|---|---|---|---|---|---|
| Part.No. | P(M) | P(F) | L | H-SQUARE | A-OP |
| VE-SB-H-S-04-MF | 1/4" | 1/4" | 70 | 27 | 93.5 |
| VE-SB-H-S-06-MF | 3/8" | 3/8" | 70 | 27 | 93.5 |
| VE-SB-H-S-08-MF | 1/2" | 1/2" | 85 | 32 | 96.5 |
| VE-SB-H-S-M20-MF | M20 X 1.5 | 20 | 85 | 32 | 96.5 |
| VE-SB-H-S-128-MF | 3/4" | 1/2" | 85 | 32 | 96.5 |
| VE-SB-H-S-12-MF | 3/4" | 3/4" | 100 | 42 | 117 |
| VE-SB-H-S-16-FF | 1" | 1" | 110 | 45 | 119 |
| Hard Seat Block & Bleed Valve (Female x Female) | ||||
|---|---|---|---|---|
| Part.No. | P(F/F) | L | SQUARE | A-OP |
| VE-SB-H-S-04-FF | 1/4" | 65 | 27 | 93.5 |
| VE-SB-H-S-06-FFF | 3/8" | 65 | 27 | 93.5 |
| VE-SB-H-S-08-FF | 1/2" | 80 | 32 | 96.5 |
| VE-SB-H-S-M20-FF | M20 X 1.5 | 80 | 32 | 96.5 |
| VE-SB-H-S-12-FF | 3/4" | 90 | 42 | 117 |
| VE-SB-H-S-16-FF | 1" | 100 | 45 | 119 |
| Soft Seat Needle Valve (Male x Female) | ||||
|---|---|---|---|---|
| Part.No. | P(M/F) | L | H-SQUARE | A-OP |
| VE-SB-S-S-04-MF | 1/4" | 60 | 27 | 93.5 |
| VE-SB-S-S-06-MF | 3/8" | 60 | 27 | 93.5 |
| VE-SB-S-S-08-MF | 1/2" | 80 | 32 | 96.5 |
| VE-SB-S-S-M20-MF | M20 X 1.5 | 80 | 32 | 96.5 |
| VE-SB-S-S-12-MF | 3/4" | 95 | 42 | 117 |
| VE-SB-S-S-16-MF | 1" | 100 | 45 | 118 |
| Soft Seat Needle Valve ( Female x Female) | ||||
|---|---|---|---|---|
| Part.No. | P(F/F) | L | H-SQUARE | A-OP |
| VE-SB-S-S-04-FF | 1/4" | 55 | 27 | 93.5 |
| VE-SB-S-S-06-FF | 3/8" | 55 | 27 | 93.5 |
| VE-SB-S-S-08-FF | 1/2" | 75 | 32 | 96.5 |
| VE-SB-S-S-M20-FF | M20 X 1.5 | 75 | 32 | 96.5 |
| VE-SB-S-S-12-FF | 3/4" | 80 | 42 | 117 |
| VE-SB-S-S-16-FF | 1" | 95 | 45 | 119 |
| Soft Seat Block & Bleed Valve (Male x Female) | |||||
|---|---|---|---|---|---|
| Part.No. | P(M) | P(F) | L | H-SQUARE | A-OP |
| VE-SB-S-S-04-MF | 1/4" | 1/4" | 70 | 27 | 93.5 |
| VE-SB-S-S-06-MF | 3/8" | 3/8" | 70 | 27 | 93.5 |
| VE-SB-S-S-08-MF | 1/2" | 1/2" | 85 | 32 | 96.5 |
| VE-SB-S-S-M20-MF | M20 X 1.5 | M20 X 1.5 | 85 | 32 | 96.5 |
| VE-SB-S-S-128-MF | 3/4" | 1/2" | 85 | 32 | 96.5 |
| VE-SB-S-S-12-MF | 3/4" | 3/4" | 100 | 42 | 117 |
| VE-SB-S-S-16-FF | 1" | 1" | 110 | 45 | 119 |
| Soft Seat Block & Bleed Valve (Female x Female) | ||||
|---|---|---|---|---|
| Part.No. | P(F/F) | L | SQUARE | A-OP |
| VE-SB-S-S-04-FF | 1/4" | 65 | 27 | 93.5 |
| VE-SB-S-S-06-FF | 3/8" | 65 | 27 | 93.5 |
| VE-SB-S-S-08-FF | 1/2" | 80 | 32 | 96.5 |
| VE-SB-S-S-M20-FF | M20 X 1.5 | 80 | 32 | 96.5 |
| VE-SB-S-S-12-FF | 3/4" | 90 | 42 | 117 |
| VE-SB-S-S-16-FF | 1" | 100 | 45 | 119 |
