5 VALVE MANIFOLD

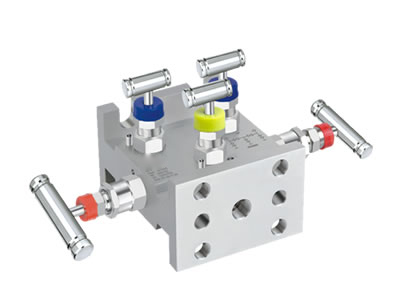

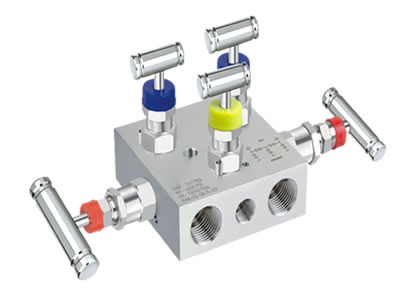

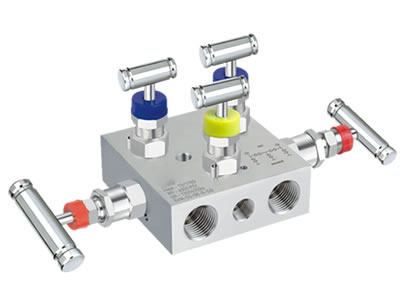

  • Venus Engineers 5 Valves Manifolds Designed for connections of impulse lines & transmitters Pipe to Pipe (R), Pipe to flange (T) and flange to flange (H) Type Designed.
  • 1/2″ Female NPT connections provided at a center distance of 54mm ( 2 1/8″)
  • Connections Include : Two Block, Two Equalizer and One Bleed Valve with two (Purge) vent connections
  • Standard Working Pressure 6000 PSI with PTFE packing.
  • Heat Code traceability.
  • All Components are Ultrasonically cleaned prior to assembly.
  • Pneumatic seat test is performed at 1000 PSI with Nitrogen gas.
  • Hydrostatic shell test is performed at 1.5 times the working pressure.
  • All the Valves are 100% Factory Tested.
  • 3.1 Certificates furnished.
  • Mounting Brackets along with accessories available on request.

Data Sheet

Type
Model No
Pipe to Pipe 5VM-8-SS-R
Pipe to Pipe Natural Gas 5VM-8-SS-R-NG
Pipe to Flange 5VM-8-SS-T
Flange to Flange 5VM-8-SS-H
Remote Mount 5VM-8-SS-RM
Direct Mount 5VM-8-SS-DM
