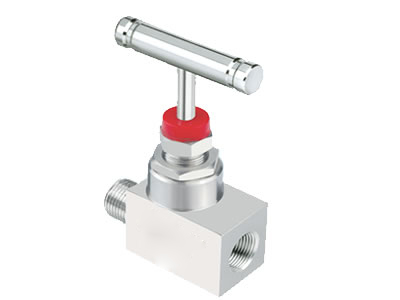

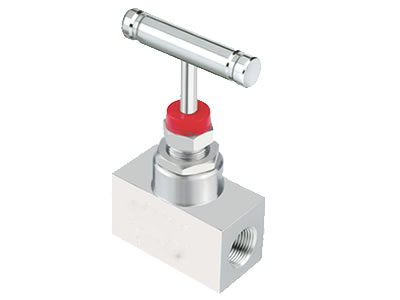

HP Series Needle Valves
Home
HP Series Needle Valves
Tube Fittings
Double Ferrule Imperial
Double Ferrule Metric
Pipe Fittings
DIN2353 Fittings
Flare Fittings
Needle Valve
Mini Series
IB Series
HB Series
SB Series
HP Series
Ball Valve
2 Way Ball Valve
3 Way Ball Valve
Manifold Valve
2 Valve Manifold
3 Valve Manifold
5 Valve Manifold
Check Valve
Hex Body Series
Bar stock construction.
Standard Working Pressure 6000 /10000 PSI with PTFE packing.
One piece body construction No joint.
Standard NPT End Connections. BSP / BSPT /Double Ferrule/DIN/ JIC Threads available on Request.
Heat Code traceability.
All Components are Ultrasonically cleaned prior to assembly.
Pneumatic seat test is performed at 1000 PSI. Medium – Nitrogen gas.
Hydrostatic seat test is performed at 1.1 times the working pressure.
Hydrostatic shell test is performed at 1.5 times the working pressure.
100% Factory Tested.
3.1 Certificates furnished.
Dimension
Part.No.
Size
A(MF)
A(FF)
S-SQ
H
L
VE-HP-S-4-MF
VE-HP-S-4-FF
1/4"
60
55
25
86
60
VE-HP-S-6-MF
VE-HP-S-6-FF
3/8"
60
55
28
86
60
VE-HP-S-8-MF
VE-HP-S-8-FF
1/2"
82
75
34
98
70
VE-HP-S-12-MF
VE-HP-S-12-FF
3/4"
87
80
38
98
70
