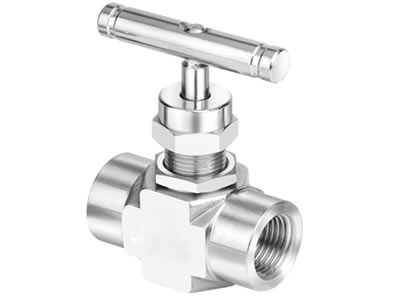

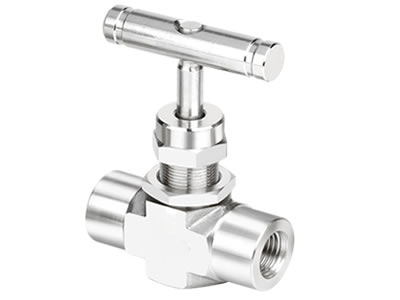

I. B. SERIES NEEDLE VALVES

Integral Bonnet Series

Bar stock / Forged Body construction.
Straight or Angle pattern available.
Standard Working Pressure 6000 PSI with PTFE packing.
Standard NPT End Connections. BSP / BSPT /Double Ferrule/DIN/ JIC Threads available on Request.
Heat Code traceability.
All Components are Ultrasonically cleaned prior to assembly.
Pneumatic seat test is performed at 1000 PSI. Medium – Nitrogen gas.
Hydrostatic seat test is performed at 1.1 times the working pressure.
Hydrostatic shell test is performed at 1.5 times the working pressure.
All the Valves are 100% Factory Tested.
