3 VALVE MANIFOLD

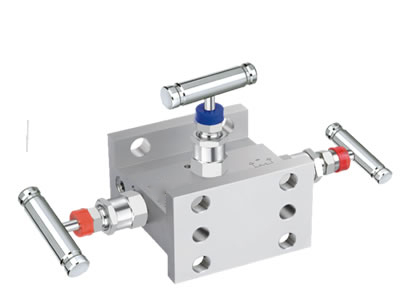

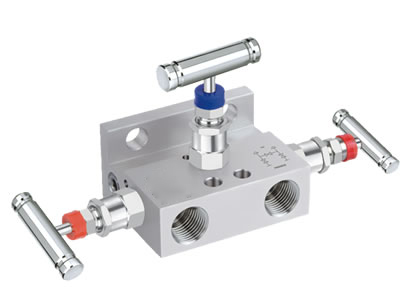

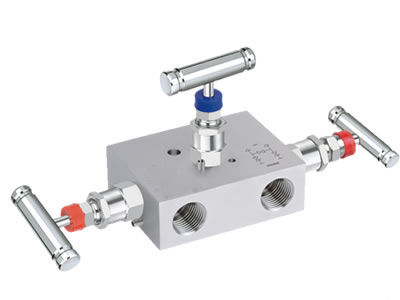

  • Venus Engineers 3 Valve Manifolds Designed for connections of impulse lines &transmitters , Pipe to pipe (R) , Pipe to Flange(T) and Flange to Flange (H) Type Designed.
  • 1/2″ Female NPT connections provided at a center distance of 54mm ( 2 1/8″)
  • Connections Include : Two Block, Two Equalizer and One Bleed Valve with two (Purge) vent connections
  • Standard Working Pressure 6000 PSI with PTFE packing.
  • Heat Code traceability.
  • All Components are Ultrasonically cleaned prior to assembly.
  • Pneumatic seat test is performed at 1000 PSI with Nitrogen gas.
  • All the Valves are 100% Factory Tested.
  • 3.1 Certificates furnished.

Data Sheet

Type
Model No
Pipe to Pipe 3VM-8-SS-R
Pipe to Flange 3VM-8-SS-T
Flange to Flange 3VM-8-SS-H
Direct Mount 3VM-8-SS-DM
Pipe to Flange Direct Mount 3VM-8-SS-DMA
Flange to Flange Direct Mount 3VM-8-SS-F
Remote Mount Compact Design 3VM-4-SS-RMCD
