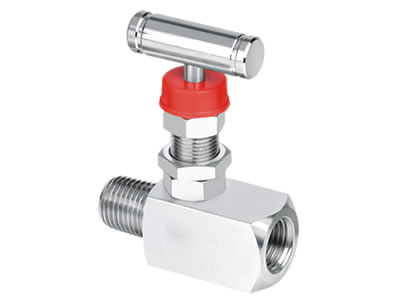

Mini Valve Series

  • Bar stock construction
  • Standard Working Pressure 4000 to 6000 PSI with PTFE packing.
  • Stainless Steel Handle -for proper actuation.
  • Standard NPT End Connections. BSP / BSPT /Double Ferrule/DIN/ JIC Threads available on Request.
  • Heat Code traceability.
  • All Components are Ultrasonically cleaned prior to assembly.
  • Pneumatic seat test is performed at 1000 PSI. Medium – Nitrogen gas.
  • Hydrostatic seat test is performed at 1.1 times the working pressure.
  • Hydrostatic shell test is performed at 1.5 times the working pressure.
  • 100% Factory Tested.
  • 3.1 Certificates furnished. 3.2 certificates available on request.

Data Sheet

End Connections
Model No
Male x Female - Viton Pkg VE-H-S-4-MF-V
Male X Female - PTFE Pkg VE-H-S-4-MF-T
Female x Female - Viton Pkg VE-H-S-4-FF-V
Female x Female - PTFE Pkg VE-H-S-4-FF-T
