Venus Engineers - Instrumentation Tube Fittings

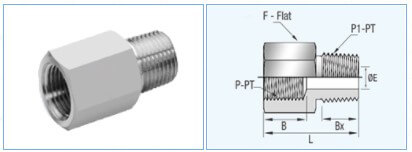

PART NO.	PIPE SIZE		DIMENSIONS
PART NO.	P-PT, BSPP	P1-PT, NPT	L	F	B	BX	E
VE-2G-2N-SS	1/8''	1/8''	21.80	14.30	6.50	9.70	4.50
VE-4G-4N-SS	1/4''	1/4''	30.20	19.10	12.90	14.20	5.50
VE-6G-6N-SS	3/8''	3/8''	32.20	23.80	14.20	14.20	6.50
VE-8G-8N-SS	1/2''	1/2''	42.70	27.00	18.80	19.10	7.00
