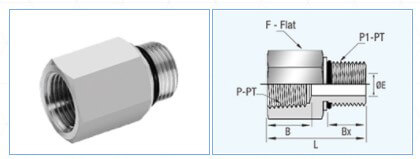

ADAPTERS - NPT X SAE / MS STRAIGHT
ADAPTERS - NPT X SAE / MS STRAIGHT
| Part No | Pipe Size | Dimensions | |||||
| P-PT, NPT | P1-PT, SAE | L | F | B | Bx | E | |
| VE-4N-7S-SS | 1/4 | 44028.00 | 33.50 | 19.10 | 15.00 | 9.10 | 5.10 |
| VE-6N-9S-SS | 3/8 | 43359.00 | 35.30 | 23.80 | 15.00 | 9.90 | 7.10 |
| VE-8N-12S-SS | 1/2 | 42433.00 | 44.70 | 27.00 | 19.80 | 11.20 | 10.70 |
| VE-12N-17S-SS | 3/4 | 41229.00 | 50.50 | 34.90 | 20.60 | 15.00 | 16.80 |
| VE-16N-21S-SS | 1 | 1 5/16-12 | 53.80 | 41.30 | 25.40 | 15.00 | 21.50 |
