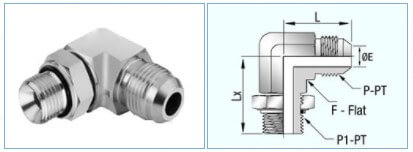

Adjustable Male Elbows - SAE 070220
Adjustable Male Elbows - SAE 070220
| Part No | Tube OD (P-PT) | (P1-PT) SAE/MS | Dimensions | |||||
| inch | mm | L | E | F | Lx | B | ||
| VE-2J-5A-SS | 1/8 | 3 | 5/16-24 | 19.60 | 1.60 | 11.10 | 23.90 | 8.40 |
| VE-3J-6A-SS | 3/16 | 4 | 3/8-24 | 21.10 | 3.20 | 11.10 | 23.90 | 8.40 |
| VE-4J-7A-SS | 1/4 | 6 | 7/16-20 | 22.60 | 4.40 | 12.70 | 26.20 | 9.80 |
| VE-5J-8A-SS | 5/16 | 8 | 1/2-20 | 24.10 | 6.00 | 14.30 | 28.70 | 9.80 |
| VE-6J-9A-SS | 3/8 | 10 | 9/16-18 | 26.90 | 7.50 | 15.90 | 31.80 | 11.00 |
| VE-8J-12A-SS | 1/2 | 12 | 3/4-16 | 31.80 | 9.90 | 20.60 | 36.80 | 12.50 |
| VE-10J-14A-SS | 5/8 | 16 | 7/8-14 | 36.80 | 12.30 | 23.80 | 43.20 | 14.20 |
| VE-12J-17A-SS | 3/4 | 18 | 1 1/16-12 | 42.20 | 15.50 | 31.80 | 49.30 | 16.50 |
| VE-14J-19A-SS | 7/8 | 22 | 1 3/16-12 | 45.70 | 18.30 | 31.80 | 50.80 | 16.50 |
| VE-16J-21A-SS | 1 | 25 | 1 5/16-12 | 46.00 | 21.50 | 34.90 | 52.10 | 16.50 |
| VE-20J-22A-SS | 1 1/4 | 32 | 1 5/8-12 | 52.30 | 27.50 | 42.90 | 57.20 | 16.50 |
| VE-24J-30A-SS | 1 1/2 | 38 | 1 7/8-12 | 59.20 | 33.00 | 50.80 | 60.70 | 16.50 |
| VE-32J-40A-SS | 2 | 50 | 2 1/2-12 | 77.70 | 45.00 | 63.50 | 73.40 | 16.50 |
