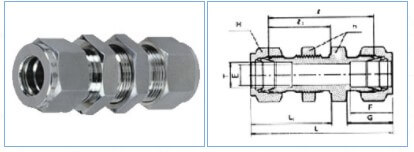

BULK HEAD UNION

Part No.
Tube O.D.
T in
E
Min
h in
H in
F
G
l
l1
L
L1
Panel
Hole
DrillSize
Max
Panel
Thickness
VE-01 1/16 1.27 5/16 5/16 8.63 10.92 23.87 13.46 31.50 17.27 5.16 3.05
VE-02
1/8
2.28
1/2
7/16
12.70
15.24
38.10
24.63
51.30
31.24
8.33
12.70
VE-03
3/16
3.04
9/16
1/2
13.71
16.00
40.38
25.40
53.59
32.00
9.92
12.70
VE-04
1/4
4.82
5/8
9/16
15.24
17.78
42.92
26.16
57.65
33.52
11.50
10.16
VE-05
5/16
6.35
11/16
5/8
16.25
18.54
45.92
28.44
60.70
35.81
13.09
11.17
VE-06
3/8
7.11
3/4
11/16
16.76
19.30
47.49
29.46
62.23
36.83
14.65
11.17
VE-08
1/2
10.41
15/16
7/8
22.86 21.84
47.49
31.75 71.12 41.91 19.44
12.70
VE-10
5/8
12.70
1-1/16
1
24.38
21.84
50.80
32.51
72.64
42.67
22.62
12.70
VE-12
3/4
15.74
1-3/16
1-1/8
24.38
21.84
52.32
37.33
78.99
47.49
25.79
16.76
VE-14
7/8
18.28
1-3/8
1-1/4
25.90
21.84
58.67
42.92
84.58
53.08
28.97
19.05
VE-16
1
22.35
1-5/8
1-1/2
31.24
26.41
64.26
45.21
95.75
57.40
33.73
19.05
