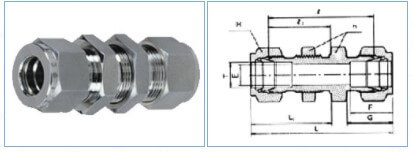

BULK HEAD UNION METRIC

Part No.
Tube O.D.
T mm
E
mm
h mm h1 mm H mm
F
G
l
l1
L
L1
Panel
Hole
DrillSize
Max
Panel
Thickness
VE- M03 3 2.4 14 12.7 12 12.9 15.3 38.1 24.6 51.3 31.2 8.3 12.7
VE- M04 4 2.4 14 14.3 12 13.7 15.3 40.4 25.4 53.6 32.0 9.9 12.7
VE- M06 6 4.8 16 15.9 14 15.3 16.1 42.9 26.2 57.7 33.6 11.5 10.2
VE- M08 8 6.4 16 17.5 16 16.2 17.7 46.0 28.6 61.0 36.1 13.1 11.2
VE- M10 10 7.9 22 22.0 19 17.2 18.6 48.5 29.4 63.7 37.0 16.2 11.2
VE- M12 12 9.5 24 23.8 22 22.8 19.5 50.8 31.8 71.0 41.9 19.5 12.7
VE- M15 15 11.9 27 27.0 25 24.4 22.0 52.3 32.5 72.5 42.6 22.8 12.7
VE- M16 16 12.7 27 27.0 25 24.4 22.0 52.3 32.5 72.5 42.6 22.8 12.7
VE- M18 18 15.1 30 30.0 30 24.4 22.0 58.7 37.7 78.9 47.4 26.0 16.8
VE- M20 20 15.9 35 35.0 32 26.0 22.0 64.3 42.9 84.5 53.0 29.0 17.0
VE- M22 22 18.3 35 35.0 32 26.0 22.0 64.3 42.9 84.5 53.0 29.0 19.1
VE- M25 25 21.8 41.3 41.3 38 31.3 26.5 71.4 45.2 95.9 57.5 33.7 19.1
