Bulkhead Female Connector

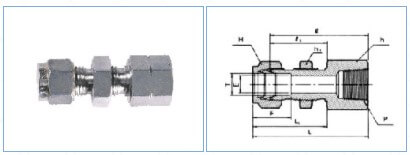

BULKHEAD FEMALE CONNECTOR
| |
Tube O.D. T mm |
(NPT) |
mm |
h mm |
h1 mm |
H mm |
F |
l |
l1 |
L |
L1 |
Panel
|
Max
|
| VE-M06-02 | 6 | 1/8 | 4.8 | 15.8 | 15.8 | 14 | 15.3 | 39.6 | 27.7 | 46.90 | 35 | 11.5 | 10.2 |
| VE-M06-04 | 6 | 1/4 | 4.8 | 19.0 | 16.0 | 14 | 15.3 | 44.4 | 26.2 | 51.80 | 33.6 | 11.5 | 10.2 |
| VE-M08-04 | 8 | 1/4 | 6.3 | 19.0 | 17.4 | 16 | 16.2 | 46.7 | 28.4 | 53.85 | 35.55 | 13.1 | 11.2 |
| VE-M12-08 | 12 | 1/2 | 9.5 | 27.0 | 24.0 | 22 | 22.8 | 55.4 | 31.8 | 66.50 | 41.9 | 19.5 | 12.7 |
