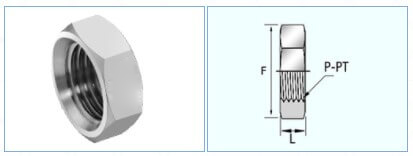

Bulkhead Lock Nuts-SAE 070118
Bulkhead Lock Nuts - SAE 070118
| Part No | Tube OD (P-PT) | Dimensions | ||
| inch | mm | L | E | |
| VE-3J-SS | 3/16 | 4 | 5.60 | 15.90 |
| VE-4J-SS | 1/4 | 6 | 7.10 | 17.50 |
| VE-5J-SS | 5/16 | 8 | 7.10 | 19.10 |
| VE-6J-SS | 3/8 | 10 | 6.90 | 20.60 |
| VE-8J-SS | 1/2 | 12 | 7.90 | 25.40 |
| VE-10J-SS | 5/8 | 16 | 9.10 | 28.60 |
| VE-12J-SS | 3/4 | 18 | 10.40 | 34.90 |
| VE-14J-SS | 7/8 | 22 | 10.40 | 38.10 |
| VE-16J-SS | 1 | 25 | 10.40 | 41.30 |
| VE-20J-SS | 1 1/4 | 32 | 10.40 | 47.60 |
| VE-24J-SS | 1 1/2 | 38 | 10.40 | 54.00 |
| VE-32J-SS | 2 | 50 | 10.40 | 69.90 |
