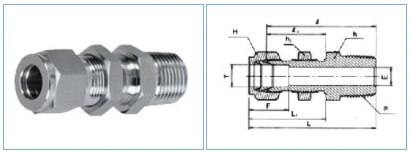

BULKHEAD HEAD MALE CONNECTOR

Part No.
Tube O.D.
T in
P
(NPT)
E
Min
h in
h  in
H in
F
l
l1
L
L1
Panel
Hole
DrillSize
Max
Panel
Thickness
VE-02-02
1/8
1/8
2.28
1/2
1/2
7/16
12.70
39.87
24.63
46.48
31.24
8.33
12.70
VE-04-02
1/4
1/8
4.82
5/8
5/8
9/16
15.24
42.16
26.16
49.53
33.52
11.50
10.16
VE-04-04
1/4
1/4
4.82
5/8
5/8
9/16
15.24
45.97
26.16
53.34
33.52
11.50
10.16
VE-06-04
3/8
1/4
7.11
3/4
3/4
11/16
16.76
50.03
29.46
57.40
36.83
14.68
11.17
VE-08-06
1/2
3/8
9.39
15/16
15/16
7/8
22.86
53.08
31.75
63.24
41.91
19.44
12.70
VE-08-08
1/2
1/2
10.41
15/16
15/16
7/8
22.86
58.67
31.75
68.83
41.91
19.44
12.70
