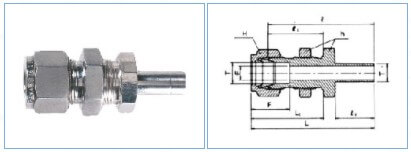

BULKHEAD REDUCER

Part No.
Tube O.D.
T in
E
Min
h in
H in
F
l
l1
l2
L
L1
Panel
Hole
DrillSize
Max
Panel
Thickness
VE-02-02
1/8
 2.03
1/2
7/16
12.70
 42.92
 24.63
 13.46
 49.53
31.24
8.33
12.70
VE-04-04
 1/4
 4.82
 5/8
 9/16
 15.24
 48.51
 26.16
 15.74
 55.88
 33.52
 11.50
10.16
VE-06-06
 3/8
 7.11
 3/4
 11/16
 16.76
 53.84
 29.46
 17.52
 61.21
 36.83
 14.68
11.17
VE-08-08
 1/2
10.41
 15/16
 7/8
 22.86
 62.73
 31.75
 23.11
 72.89
 41.91
 19.44
 12.70
