Venus Engineers - Instrumentation Tube Fittings

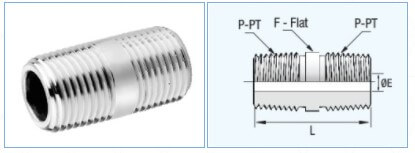

PART NO.	Pipe Size	Dimensions
PART NO.	P-PT, NPT	L	F	E
VE-1N-SS	1/16	19.10	7.90	3.00
VE-2N-SS	1/8	19.10	10.30	4.80
VE-4N-SS	1/4	28.40	13.70	7.10
VE-6N-SS	3/8	28.40	17.10	9.60
VE-8N-SS	1/2	38.10	21.30	11.90
VE-12N-SS	3/4	38.10	26.70	15.70
VE-16N-SS	1	47.80	33.40	22.40
