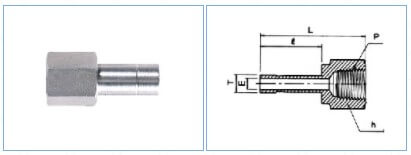

FEMALE ADAPTER METRIC

Part No.

Tube O.D.
T mm
P
(NPT)
E

h mm
l
L
VE-M03-02 3 1/8 1.8 14 13.15 31.15
VE-M06-02 6 1/8 4.6 14 15.75 32.5
VE-M06-04 6 1/4 4.6 19 15.75 37.1
VE-M08-04 8 1/4 6.3 19 16.50 37.6
VE-M10-04 10 1/4 7.7 19 17.50 38.1
VE-M10-06 10 3/8 7.7 22 17.50 40.1
VE-M10-08 10 1/2 7.7 27 17.50 46.5
VE-M12-04 12 1/4 9.1 19 23.50 43.7
VE-M12-06 12 3/8 9.1 22 23.50 46.0
VE-M12-08 12 1/2 9.1 27 23.50 52.3
VE-M18-12 18 3/4 13.9 32 24.90 54.8
