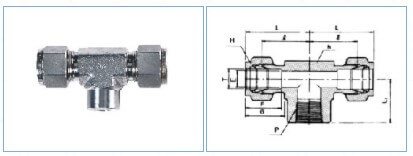

FEMALE BRANCH TEE METRIC

Part No.

Tube O.D.
T mm
P
(NPT)
E
mm

h mm

H mm
F
G
l
L
L1
VE-M06-02 6 1/8 4.8 12.70 14 15.3 17.7 19.6 27.0 19.0
VE-M06-04 6 1/4 4.8 17.46 14 15.3 17.7 22.4 29.8 22.4
VE-M06-06 6 3/8 4.8 20.63 14 15.3 17.7 22.4 31.7 22.4
VE-M06-08 6 1/2 4.8 25.40 14 15.3 17.7 27.2 34.7 28.4
VE-M08-02 8 1/8 6.4 15.87 16 16.2 18.6 23.1 29.9 19.0
VE-M08-04 8 1/4 6.4 17.46 16 16.2 18.6 23.1 30.6 22.4
VE-M08-06 8 3/8 6.4 20.63 16 16.2 18.6 25.2 32.4 22.4
VE-M08-08 8 1/2 6.4 25.40 16 16.2 18.6 28.0 35.2 28.4
VE-M10-04 10 1/4 7.9 20.63 19 17.2 19.5 25.9 33.5 22.4
VE-M10-06 10 3./8 7.9 20.63 19 17.2 19.5 25.9 33.3 22.4
VE-M10-08 10 1/2 9.5 25.40 19 17.2 19.5 26.2 33.6 22.4
VE-M12-04 12 1/4 9.5 20.63 22 22.8 22.0 25.9 36.0 22.4
VE-M12-06 12 3/8 9.5 20.63 22 22.8 22.0 25.9 36.0 22.4
VE-M12-08 12 1/2 9.5 25.40 22 22.8 22.0 29.7 40.0 28.4
VE-M16-08 16 1/2 12.7 25.4 25 24.4 22.0 28.7 38.8 28.7
