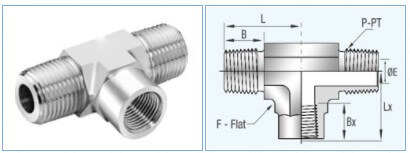

Female Branch Tee - NPT
Female Branch Tee - NPT
| Part No | PIPE SIZE | DIMENSION | |||||
| P-PT NPT | L | F | B | E | LX | BX | |
| VE-1 N-SS | 1/16 | 18.30 | 11.10 | 9.70 | 3.00 | 21.80 | 9.90 |
| VE-2N-SS | 1/8 | 22.10 | 12.70 | 9.70 | 4.80 | 26.40 | 10.40 |
| VE-4N-SS | 1/4 | 29.70 | 17.50 | 14.20 | 7.10 | 29.70 | 15.00 |
| VE-6N-SS | 3/8 | 32.00 | 20.60 | 14.20 | 9.60 | 36.10 | 15.00 |
| VE-8N-SS | 1/2 | 39.60 | 25.40 | 19.10 | 11.90 | 39.60 | 19.80 |
| VE-12N-SS | 3/4 | 42.40 | 31.80 | 19.10 | 15.70 | 48.80 | 20.60 |
| VE-16N-SS | 1 | 49.30 | 42.90 | 23.90 | 22.40 | 48.50 | 25.40 |
