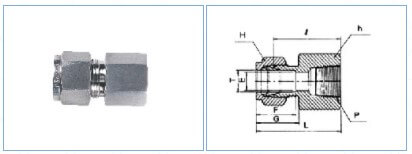

FEMALE CONNECTOR METRIC

Part No.

Tube O.D.
T mm
P
(NPT)
E
mm

h mm

H mm
F
G
l
L
VE-M03-02 3 1/8 2.4 14 12 12.9 15.3 22.1 28.7
VE-M03-04 3 1/4 2.4 19 12 12.9 15.3 26.9 33.5
VE-M04-02 4 1/8 2.4 14 12 13.7 16.1 23.1 29.7
VE-M06-02 6 1/8 4.8 14 14 15.3 17.7 23.9 31.3
VE-M06-04 6 1/4 4.8 19 14 15.3 17.7 28.4 35.8
VE-M06-06 6 3/8 4.8 22 14 15.3 17.7 29.5 36.9
VE-M06-08 6 1/2 4.8 27 14 15.3 17.7 35.1 42.5
VE-M08-02 8 1/8 6.4 15 16 16.2 18.6 24.6 32.1
VE-M08-04 8 1/4 6.4 19 16 16.2 18.6 29.5 37.0
VE-M08-06 8 3/8 6.4 22 16 16.2 18.6 30.2 37.7
VE-M08-08 8 1/2 6.4 27 16 16.2 19.5 35.8 43.3
VE-M10-02 10 1/8 7.9 18 19 17.2 19.5 25.4 33.0
VE-M10-04 10 1/4 7.9 19 19 17.2 19.5 30.2 37.8
VE-M10-06 10 3/8 7.9 22 19 17.2 19.5 31.0 38.6
VE-M10-08 10 1/2 7.9 27 19 17.2 22.0 36.6 44.2
VE-M12-02 12 1/8 8.3 22 22 22.8 22.0 28.4 38.5
VE-M12-04 12 1/4 9.5 22 22 22.8 22.0 30.2 40.3
VE-M12-06 12 3/8 9.5 22 22 22.8 22.0 31.0 41.1
VE-M12-08 12 1/2 9.5 27 22 22.8 22.0 36.6 46.7
VE-M12-12 12 3/4 9.5 35 22 22.8 22.0 38.9 49.0
VE-M15-08 15 1/2 11.9 27 25 24.4 22.0 36.6 46.7
VE-M16-08 16 1/2 12.7 27 25 24.4 22.0 36.8 46.9
VE-M20-08 20 1/2 15.9 30 32 26.0 22.0 37.8 47.9
VE-M20-12 20 3/4 15.9 35 32 26.0 22.0 39.6 49.7
VE-M22-12 22 3/4 18.3 35 32 26.0 22.0 39.6 49.7
VE-M22-16 22 1 18.3 41 32 26.0 22.0 47.8 57.9
VE-M25-12 25 3/4 21.8 35 38 31.3 26.5 41.1 53.4
VE-M25-16 25 1 21.8 41 38 31.3 26.5 50.0 62.3
