Female Connectors SAE 070103

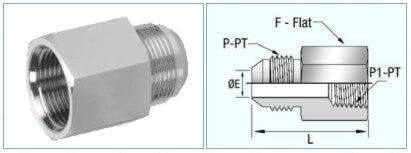

FEMALE CONNECTION SAE 070103
| Part No | Tube OD (P-PT) | (P1-PT) NPT | Dimensions | |||
| inch | mm | L | E | F | ||
| VE-2J-2N-SS | 1/8 | 3 | 1/8 | 28.40 | 1.60 | 14.30 |
| VE-3J-2N-SS | 3/16 | 4 | 1/8 | 28.70 | 3.20 | 14.30 |
| VE-4J-2N-SS | 1/4 | 6 | 1/8 | 30.20 | 4.40 | 14.30 |
| VE-4J-4N-SS | 1/4 | 6 | 1/4 | 35.30 | 4.40 | 19.10 |
| VE-5J-2N-SS | 5/16 | 8 | 1/8 | 29.70 | 6.00 | 14.30 |
| VE-5J-4N-SS | 5/16 | 8 | 1/4 | 35.30 | 6.00 | 19.10 |
| VE-6J-4N-SS | 3/8 | 10 | 1/4 | 35.60 | 7.50 | 19.10 |
| VE-6J-6N-SS | 3/8 | 10 | 3/8 | 37.10 | 7.50 | 22.20 |
| VE-8J-6N-SS | 1/2 | 12 | 3/8 | 39.60 | 9.90 | 22.20 |
| VE-8J-8N-SS | 1/2 | 12 | 1/2 | 45.60 | 9.90 | 28.60 |
| VE-10J-8N-SS | 5/8 | 16 | 1/2 | 48.00 | 12.30 | 28.60 |
| VE-12J-8N-SS | 3/4 | 18 | 1/2 | 52.10 | 15.50 | 28.60 |
| VE-12J-12N-SS | 3/4 | 18 | 3/4 | 52.30 | 15.50 | 34.90 |
| VE-14J-12N-SS | 7/8 | 22 | 3/4 | 52.30 | 18.30 | 34.90 |
| VE-16J-16N-SS | 1 | 25 | 1 | 59.70 | 21.50 | 41.30 |
| VE-20J-20N-SS | 1 1/4 | 32 | 1 1/4 | 63.20 | 27.50 | 50.80 |
| VE-32J-24N-SS | 2 | 38 | 1 1/2 | 66.50 | 33.00 | 60.30 |
| VE-32J-32N-SS | 2 | 50 | 2 | 75.40 | 45.00 | 73.00 |
