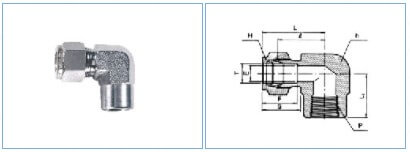

FEMALE ELBOW IMPERIAL

Part No.
Tube O.D.
T in
P
(NPT)
E
Min
h in
H in
F
G
l
L
L1
VE-02-02
1/8
1/8
2.28
1/2
7/16
12.70
15.24
18.03
24.63
19.05
VE-02-04
1/8
1/4
2.28
11/16
7/16
12.70
15.24
20.62
27.82
22.35
VE-03-02
3/16
1/8
3.04
1/2
1/2
13.71
16.00
18.79
25.40
19.05
VE-04-02
1/4
1/8
4.82
1/2
9/16
15.24
17.78
19.55
26.92
19.05
VE-04-04
1/4
1/4
4.82
11/16
9/16
15.24
17.78
22.35
29.71
22.35
VE-04-06
1/4
3/8
4.82
13/16
9/16
15.24
17.78
24.38
31.75
22.35
VE-04-08
1/4
1/2
4.82
1
9/16
15.24
17.78
27.17
34.54
28.44
VE-05-02
5/16
1/8
6.35
9/16
5/8
16.25
18.54
21.33
28.70
19.05
VE-05-04
5/16
1/4
6.35
11/16
5/8
16.25
18.54
23.11
30.48
22.35
VE-06-02
3/8
1/8
7.11
5/8
11/16
16.76
19.30
23.11
30.48
19.05
VE-06-04
3/8
1/4
7.11
11/16
11/16
16.76
19.30
23.87
31.24
22.35
VE-06-06
3/8
3/8
7.11
13/16
11/16
16.76
19.30
25.90
33.27
22.35
VE-06-08
3/8
1/2
7.11
1
11/16
16.76
19.30
28.70
36.06
28.44
VE-08-04
1/2
1/4
10.41
13/16
7/8
22.86
21.84
25.90
36.06
22.35
VE-08-06
1/2
3/8
10.41
13/16
7/8
22.86
21.84
25.90
36.08
22.35
VE-08-08
1/2
1/2
10.41
1
7/8
22.86
21.84
28.70
38.86
28.44
VE-10-06
5/8
3/8
12.70
15/16
1
24.38
21.84
27.94
38.10
20.35
VE-10-08 5/8 1/2 12.70 1 1 24.38 21.84 29.71 39.87 28.44
VE-12-08
3/4
1/2
15.74
1-1/16
1-1/8
24.38
21.84
29.71
39.87
28.44
VE-12-12
3/4
3/4
15.74
1-1/4
1-1/8
24.38
21.84
34.54
44.70
31.75
VE-14-12
7/8
3/4
18.28
1-1/4
1-1/4
25.90
21.84
34.54
44.70
31.75
VE-16-12
1
3/4
22.35
1-27/64
1-1/2
31.24
26.41
36.83
49.02
31.75
VE-16-16
1
1
22.35
1-11/16
1-1/2
31.24
26.41
38.10
50.29
38.10
