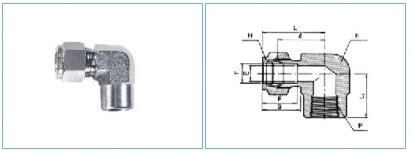

FEMALE ELBOW METRIC

Part No.

Tube O.D.
T  mm
P
(NPT)
E
mm

h  mm

H mm
F
G
l
L
L1
VE-M06-04 6 1/4 4.8 17.46 14 15.3 17.7 22.4 28.9 22.40
VE-M06-06 6 3/8 4.8 20.63 14 15.3 17.7 24.4 31.7 22.40
VE-M06-08 6 1/2 4.8 25.40 14 15.3 17.7 27.2 34.6 28.40
VE-M08-04 8 1/4 6.4 17.46 16 16.2 18.6 23.1 30.6 22.40
VE-M08-08 8 1/2 6.4 20.63 16 16.2 18.6 28.0 35.2 28.40
VE-M10-04 10 1/4 7.9 17.46 19 17.2 19.5 25.9 33.5 22.35
VE-M10-06 10 3/8 7.9 20.63 19 17.2 19.5 25.9 33.5 22.40
VE-M10-08 10 1/2 7.9 25.40 19 17.2 19.5 28.7 36.1 28.40
VE-M12-06 12 3/8 9.5 20.63 22 22.8 22.0 25.9 36.2 22.35
VE-M12-08 12 1/2 9.5 25.40 22 22.8 22.0 28.7 38.8 28.40
