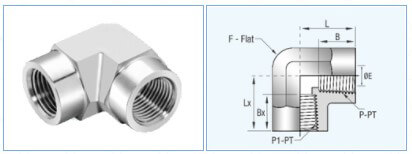

Female Elbow - NPT
Female Elbow - NPT
| Part No | Pipe Size | Dimensions | ||||||
| P-PT, NPT | P1-PT, NPT | L | F | B | E | LX | Bx | |
| VE-1N-SS | 1/16 | 1/16 | 21.80 | 11.10 | 9.90 | 4.80 | 21.80 | 9.90 |
| VE-2N-1N-SS | 1/8 | 1/16 | 26.40 | 12.70 | 10.40 | 4.80 | 26.40 | 9.90 |
| VE-2N-SS | 1/8 | 1/8 | 26.40 | 12.70 | 10.40 | 7.10 | 26.40 | 10.40 |
| VE-4N-2N-SS | 1/4 | 1/8 | 29.70 | 17.50 | 15.00 | 7.10 | 29.70 | 10.40 |
| VE-4N-SS | 1/4 | 1/4 | 29.70 | 17.50 | 15.00 | 10.40 | 29.70 | 15.00 |
| VE-6N-SS | 3/8 | 3/8 | 36.10 | 20.60 | 15.00 | 12.70 | 36.10 | 15.00 |
| VE-8N-SS | 1/2 | 1/2 | 39.60 | 25.40 | 19.80 | 17.10 | 39.60 | 19.80 |
| VE-12N-SS | 3/4 | 3/4 | 48.80 | 31.80 | 20.60 | 22.40 | 48.80 | 20.60 |
| VE-16N-SS | 1 | 1.00 | 48.50 | 42.90 | 25.40 | 28.10 | 48.50 | 25.40 |
| VE-20N-SS | 1 1/4 | 1 1/4 | 59.80 | 50.80 | 25.40 | 27.70 | 59.80 | 25.40 |
| VE-24N-SS | 1 1/2 | 1 1/2 | 65.00 | 63.50 | 27.70 | 34.00 | 65.00 | 27.70 |
