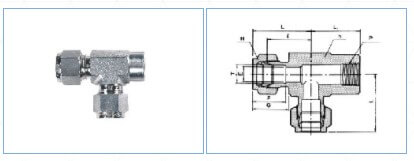

FEMALE RUN TEE IMPERIAL

Part No.
Tube O.D.
T in
P
(NPT)
E
Min
h in
H in
F
G
l
L
L1
VE-02-02
1/8
1/8
2.28
1/2
7/16
12.70
15.24
18.03
24.63
19.05
VE-04-02
1/4
1/8
4.82
1/2
9/16
15.24
17.78
19.55
26.92
19.05
VE-04-04
1/4
1/4
4.82
11/16
9/16
15.24
17.78
22.86
29.71
22.35
VE-06-04
3/8
1/4
7.11
11/16
11/16
16.76
19.30
23.87
31.24
22.35
VE-08-06
1/2
3/8
10.41
13/16
7/8
22.86
21.84
25.90
36.06
22.35
VE-08-08
1/2
1/2
10.41
1
7/8
22.86
21.84
29.71
39.87
28.44
VE-12-12
3/4
3/4
15.74
1-1/4
1-1/8
24.38
21.84
34.54
44.70
31.75
