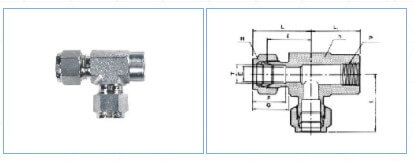

Female Run Tee
Female Run Tee
| |
Tube
O.D. |
(NPT) |
mm |
h mm |
H mm |
|
|
|
|
|
| VE-M06-02 | 6 | 1/8 | 4.8 | 12.70 | 14 | 15.3 | 17.7 | 19.6 | 46.0 | 19.0 |
| VE-M06-04 | 6 | 1/4 | 4.8 | 17.46 | 14 | 15.3 | 17.7 | 22.4 | 52.1 | 22.4 |
| VE-M06-08 | 6 | 1/2 | 4.8 | 25.40 | 14 | 15.3 | 17.7 | 27.2 | 34.5 | 28.4 |
| VE-M08-02 | 8 | 1/8 | 6.4 | 15.87 | 16 | 16.2 | 18.6 | 22.4 | 48.9 | 19.0 |
| VE-M08-04 | 8 | 1/4 | 6.4 | 17.46 | 16 | 16.2 | 18.6 | 23.1 | 53.0 | 22.4 |
| VE-M08-06 | 8 | 3/8 | 6.4 | 20.63 | 16 | 16.2 | 18.6 | 25.2 | 32.4 | 22.4 |
| VE-M08-08 | 8 | 1/2 | 6.4 | 25.40 | 16 | 16.2 | 28.6 | 28.0 | 35.2 | 28.4 |
| VE-M12-04 | 12 | 1/4 | 9.5 | 20.63 | 22 | 22.8 | 22.0 | 25.9 | 58.4 | 22.4 |
| VE-M12-06 | 12 | 3/8 | 9.5 | 20.63 | 22 | 22.8 | 22.0 | 25.9 | 58.4 | 22.4 |
| VE-M12-08 | 12 | 1/2 | 9.5 | 26.98 | 22 | 22.8 | 22.0 | 29.7 | 40.0 | 28.4 |
| VE-M16-08 | 16 | 1/2 | 12.7 | 25.40 | 25 | 24.4 | 22.0 | 29.7 | 39.9 | 28.4 |
