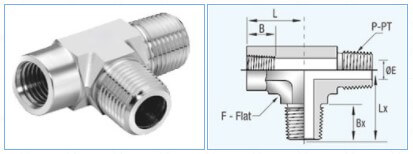

FEMALE RUN TEE- NPT
FEMALE RUN TEE- NPT
| Part No | Pipe Size | Dimensions | |||||
| P-PT, NPT | L | F | B | E | Lx | Bx | |
| VE-1N-SS | 1/16 | 21.80 | 11.10 | 9.90 | 3.0 | 18.30 | 9.70 |
| VE-2N-SS | 1/8 | 26.40 | 12.70 | 10.40 | 4.80 | 22.10 | 9.70 |
| VE-4N-SS | 1/4 | 29.70 | 17.50 | 15.00 | 7.10 | 29.70 | 14.20 |
| VE-6N-SS | 3/8 | 36.10 | 20.60 | 15.00 | 9.60 | 32.00 | 14.20 |
| VE-8N-SS | 1/2 | 39.60 | 25.40 | 19.80 | 11.90 | 39.60 | 19.10 |
| VE-12N -SS | 3/4 | 48.80 | 31.80 | 20.60 | 15.70 | 42.40 | 19.10 |
| VE-16N -SS | 1 | 48.50 | 42.90 | 25.40 | 22.40 | 49.30 | 23.90 |
