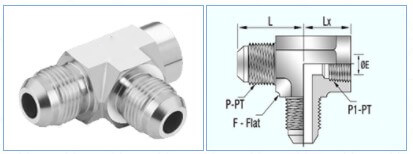

Female Run Tees - SAE 070426
Female Run Tees - SAE 070426
| Part No | Tube OD (P-PT) | (P1-PT) NPT | Dimensions | ||||
| inch | mm | L | E | F | Lx | ||
| VE-2J-2N-SS | 1/8 | 3 | 1/8 | 25.40 | 1.60 | 14.30 | 16.80 |
| VE-3J-2N-SS | 3/16 | 4 | 1/8 | 26.20 | 3.20 | 14.30 | 16.80 |
| VE-4J-2N-SS | 1/4 | 6 | 1/8 | 27.40 | 4.40 | 14.30 | 16.80 |
| VE-4J-4N-SS | 1/4 | 6 | 1/4 | 30.90 | 4.40 | 20.60 | 22.40 |
| VE-5J-2N-SS | 5/16 | 8 | 1/8 | 27.40 | 6.00 | 14.30 | 16.80 |
| VE-5J-4N-SS | 5/16 | 8 | 1/4 | 30.90 | 6.00 | 20.60 | 22.40 |
| VE-6J-2N-SS | 3/8 | 10 | 1/8 | 26.90 | 7.50 | 15.90 | 16.80 |
| VE-6J-4N-SS | 3/8 | 10 | 1/4 | 31.20 | 7.50 | 20.60 | 22.40 |
| VE-6J-6N-SS | 3/8 | 10 | 3/8 | 33.20 | 7.50 | 23.80 | 25.90 |
| VE-8J-4N-SS | 1/2 | 12 | 1/4 | 31.60 | 9.90 | 20.60 | 22.40 |
| VE-8J-6N-SS | 1/2 | 12 | 3/8 | 36.10 | 9.90 | 23.80 | 25.90 |
| VE-8J-8N-SS | 1/2 | 12 | 1/2 | 36.10 | 9.90 | 27.00 | 31.20 |
| VE-10J-8N-SS | 5/8 | 16 | 1/2 | 41.70 | 12.30 | 27.00 | 31.20 |
| VE-12J-8N-SS | 3/4 | 18 | 1/2 | 42.10 | 15.50 | 31.80 | 31.20 |
| VE-12J-12N-SS | 3/4 | 18 | 3/4 | 48.00 | 15.50 | 34.90 | 34.50 |
| VE-14J-12N-SS | 7/8 | 22 | 3/4 | 47.20 | 18.30 | 34.90 | 36.10 |
| VE-16J-16N-SS | 1 | 25 | 1 | 55.10 | 21.50 | 42.90 | 41.10 |
| VE-20J-20N-SS | 1 1/4 | 32 | 1 1/4 | 59.20 | 27.50 | 50.80 | 43.20 |
| VE-24J-24N-SS | 1 1/2 | 38 | 1 1/2 | 73.40 | 33.00 | 63.50 | 52.80 |
| VE-32J-32N-SS | 2 | 50 | 2 | 83.80 | 45.00 | 63.50 | 60.70 |
