Hex Long Nipple Npt

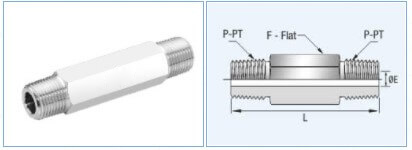

HEX LONG NIPPLE - NPT
| Part No | Pipe Size | Dimensions | ||
| P-PT, NPT | L | F | E | |
| VE-2N-SS-L1.5 | 1/8 | 38.10 | 11.10 | 4.80 |
| VE-2N-SS-L2.0 | 1/8 | 50.80 | 11.10 | 4.80 |
| VE-2N-SS-L2.5 | 1/8 | 63.50 | 11.10 | 4.80 |
| VE-2N-SS-L3.0 | 1/8 | 76.20 | 11.10 | 4.80 |
| VE-4N-SS-L1.5 | 1/4 | 38.10 | 14.30 | 7.10 |
| VE-4N-SS-L2.0 | 1/4 | 50.80 | 14.30 | 7.10 |
| VE-4N-SS-L2.5 | 1/4 | 63.50 | 14.30 | 7.10 |
| VE-4N-SS-L3.0 | 1/4 | 76.20 | 14.30 | 7.10 |
| VE-4N-SS-L4.0 | 1/4 | 101.60 | 14.30 | 7.10 |
| VE-6N-SS-L1.5 | 3/8 | 38.10 | 17.50 | 9.70 |
| VE-6N-SS-L2.0 | 3/8 | 50.80 | 17.50 | 9.70 |
| VE-6N-SS-L2.5 | 3/8 | 63.50 | 17.50 | 9.70 |
| VE-6N-SS-L3.0 | 3/8 | 76.20 | 17.50 | 9.70 |
| VE-6N-SS-L4.0 | 3/8 | 101.60 | 17.50 | 9.70 |
| VE-8N-SS-L2.0 | 1/2 | 50.80 | 22.20 | 11.90 |
| VE-8N-SS-L3.0 | 1/2 | 76.20 | 22.20 | 11.90 |
| VE-8N-SS-L4.0 | 1/2 | 101.60 | 22.20 | 11.90 |
| VE-8N-SS-L6.0 | 1/2 | 152.40 | 22.20 | 11.90 |
| VE-12N-SS-L2.0 | 3/4 | 50.80 | 27.00 | 15.70 |
| VE-12N-SS-L3.0 | 3/4 | 76.20 | 27.00 | 15.70 |
| VE-12N-SS-L4.0 | 3/4 | 101.60 | 27.00 | 15.70 |
| VE-16N-SS-L3.0 | 1 | 76.20 | 34.90 | 22.40 |
| VE-16N-SS-L4.0 | 1 | 101.60 | 34.90 | 22.40 |
