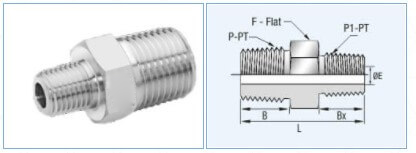

HEX REDUCING NIPPLE -NPT
HEX REDUCING NIPPLE -NPT
| Part No | Pipe Size | Dimensions | |||||
| P-PT, NPT | P1-PT, NPT | L | F | B | Bx | E | |
| VE-2N-1N-SS | 1/8 | 1/16 | 25.60 | 11.10 | 9.70 | 9.70 | 3.00 |
| VE-4N-1N-SS | 1/4 | 1/16 | 31.00 | 14.30 | 14.20 | 9.70 | 3.00 |
| VE-4N-2N-SS | 1/4 | 1/8 | 31.00 | 14.30 | 14.20 | 9.70 | 4.80 |
| VE-6N-1N-SS | 3/8 | 1/16 | 31.80 | 17.50 | 14.20 | 9.70 | 3.00 |
| VE-6N-2N-SS | 3/8 | 1/8 | 31.8 | 17.50 | 14.20 | 9.70 | 4.80 |
| VE-6N-4N-SS | 3/8 | 1/4 | 36.30 | 17.50 | 14.20 | 14.20 | 7.10 |
| VE-8N-2N-SS | 1/2 | 1/8 | 37.30 | 22.20 | 19.10 | 9.70 | 4.80 |
| VE-8N-4N-SS | 1/2 | 1/4 | 41.90 | 22.20 | 19.10 | 14.20 | 7.10 |
| VE-8N-6N-SS | 1/2 | 3/8 | 41.90 | 22.20 | 19.10 | 14.20 | 9.70 |
| VE-12N-2N-SS | 3/4 | 1/8 | 40.40 | 27.00 | 19.10 | 9.70 | 4.80 |
| VE-12N-4N-SS | 3/4 | 1/4 | 41.90 | 21.00 | 19.10 | 14.20 | 7.10 |
| VE-12N-6N-SS | 3/4 | 3/8 | 45.20 | 27.00 | 19.10 | 14.20 | 9.70 |
| VE-12N-8N-SS | 3/4 | 1/2 | 46.70 | 27.00 | 19.10 | 19.10 | 11.90 |
| VE-16N-2N-SS | 1 | 1/8 | 45.20 | 34.90 | 23.90 | 9.70 | 4.80 |
| VE-16N-4N-SS | 1 | 1/4 | 49.30 | 34.90 | 23.90 | 14.20 | 7.10 |
| VE-16N-6N-SS | 1 | 3/8 | 50.00 | 34.90 | 23.90 | 14.20 | 9.70 |
| VE-16N-8N-SS | 1 | 1/2 | 54.10 | 34.90 | 23.90 | 19.10 | 11.90 |
| VE-16N-12N-SS | 1 | 3/4 | 54.10 | 34.90 | 23.90 | 19.10 | 15.70 |
| VE-20N-16N-SS | 1 1/4 | 1.00 | 62.20 | 44.50 | 23.90 | 23.90 | 22.40 |
