Venus Engineers - Instrumentation Tube Fittings

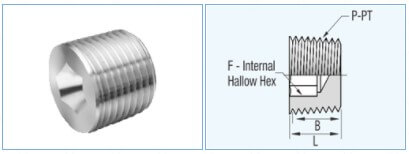

Part No	Pipe Size	Dimensions
Part No	P-PT, BSPT	L	F	B
VE-1R-SS	1/16	7.60	4.00	7.40
VE-2R-SS	1/8	10.40	4.80	7.40
VE-4R-SS	1/4	15.50	6.40	12.40
VE-6R-SS	3/8	15.50	7.90	12.40
VE-8R-SS	1/2	19.30	9.50	16.20
VE-12R-SS	3/4	19.80	14.30	16.70
VE-16R-SS	1	20.80	15.90	17.70
