Large Hex Unions SAE 070119

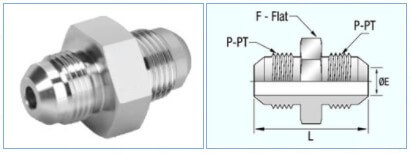

LARGE HEX UNIONS SAE 070119
| Part No | Tube OD (P-PT) | Dimensions | |||
| inch | mm | L | E | F | |
| VE-2J-SS | 1/8 | 3 | 29.70 | 1.60 | 14.30 |
| VE-3J-SS | 3/16 | 4 | 31.20 | 3.20 | 15.90 |
| VE-4J-SS | 1/4 | 6 | 34.80 | 4.40 | 17.50 |
| VE-5J-SS | 5/16 | 8 | 34.80 | 6.00 | 19.10 |
| VE-6J-SS | 3/8 | 10 | 35.80 | 7.50 | 20.60 |
| VE-8J-SS | 1/2 | 12 | 41.10 | 9.90 | 25.40 |
| VE-10J-SS | 5/8 | 16 | 47.80 | 12.30 | 28.60 |
| VE-12J-SS | 3/4 | 18 | 54.90 | 15.50 | 34.90 |
| VE-14J-SS | 7/8 | 22 | 56.10 | 18.30 | 38.10 |
| VE-16J-SS | 1 | 25 | 57.20 | 21.50 | 41.30 |
| VE-20J-SS | 1 1/4 | 32 | 61.70 | 27.50 | 47.60 |
| VE-24J-SS | 1 1/2 | 38 | 69.80 | 33.00 | 54.00 |
| VE-32J-SS | 2 | 50 | 86.40 | 45.00 | 69.90 |
