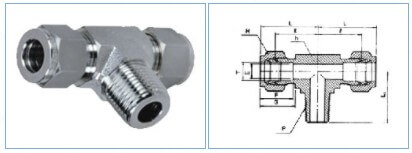

MALE BRANCH TEE METRIC

Part No.

Tube O.D.
T  mm
P
(NPT)
E
mm

h     mm

H     mm
F
G
l
L
L1
VE-M03-02 3 1/8 2.4 12.7 12 12.9 15.3 17.0 23.6 17.8
VE-M03-04 3 1/4 2.4 12.7 12 12.9 15.3 18.0 24.6 23.4
VE-M04-02 4 1/8 2.4 12.7 12 13.7 16.1 18.8 25.4 18.8
VE-M06-02 6 1/8 4.8 12.7 14 15.3 17.7 19.6 27.0 18.8
VE-M06-04 6 1/4 4.8 14.2 14 15.3 17.7 19.6 27.0 23.4
VE-M08-02 8 1/8 4.8 14.3 16 16.2 18.6 21.3 28.8 19.8
VE-M08-04 8 1/4 6.4 17.5 16 16.2 18.6 21.3 28.8 24.4
VE-M10-04 10 1/4 7.1 17.5 19 17.2 19.5 23.9 31.5 28.2
VE-M10-06 10 3/8 7.9 20.6 19 17.2 19.5 23.9 31.5 28.2
VE-M12-04 12 1/4 7.1 20.6 22 22.8 22.0 25.9 36.0 28.2
VE-M12-06 12 3/8 9.5 20.6 22 22.8 22.0 25.9 36.0 28.2
VE-M12-08 12 1/2 9.5 20.6 22 22.8 22.0 25.9 36.0 33.0
VE-M16-06 16 3/8 9.5 25.4 25 24.4 22.0 27.9 38.0 30.2
VE-M16-08 16 1/2 11.9 25.4 25 24.4 22.0 27.9 38.0 35.1
VE-M20-12 20 3/4 15.9 31.8 32 26.0 22.0 34.5 44.6 41.7
