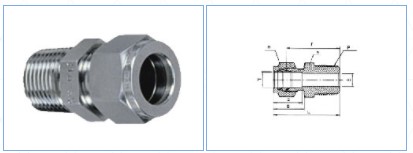

MALE CONNECTOR IMPERIAL

Part No. Tube O.D. T in P
(NPT)		 E
Min		 in

 in

 F G l L
VE 01-01
1/16
1/16
1.27
5/16
5/16
8.63
10.92
20.00
23.83
VE 01-02
1/16
1/8
1.27
7/16
7/16
8.63
10.92
22.35
26.33
VE-02-02
1/8
1/8
2.28
7/16
7/16
12.70
15.24
23.87
30.48
VE-02-04
1/8
1/4
2.28
9/16
7/16
12.70
15.24
28.95
35.56
VE-02-06
1/8
3/8
2.28
11/16
7/16
12.70
15.24
29.21
35.81
VE-02-08
1/8
1/2
2.28
7/8
7/16
12.70
15.24
35.56
42.16
VE-03-02
3/16
1/8
3.04
7/16
1/2
13.71
16.00
24.63
31.24
VE03-04
3/16
1/4
3.04
9/16
1/2
13.71
16.00
29.71
36.32
VE04-02
1/4
1/8
4.82
1/2
9/16
15.24
17.78
25.40
32.76
VE-04-04
1/4
1/4
4.82
9/16
9/16
15.24
17.78
30.48
37.84
VE-04-06
1/4
3/8
4.82
11/16
9/16
15.24
17.78
30.98
38.35
VE-04-08
1/4
1/2
4.82
7/8
9/16
15.24
17.78
37.33
44.70
VE-04-12
1/4
3/4
4.82
1-1/16
9/16
15.24
17.78
38.86
46.22
VE-05-02
5/16
1/8
4.82
9/16
5/8
16.25
18.54
26.67
34.03
VE-05-04
5/16
1/4
6.35
9/16
5/8
16.25
18.54
31.24
38.60
VE-05-06
5/16
3/8
6.35
11/16
5/8
16.25
18.54
31.75
39.11
VE-06-02
3/8
1/8
4.82
5/8
11/16
16.76
19.30
29.94
35.30
VE-06-04
3/8
1/4
7.11
5/8
11/16
16.76
19.30
32.51
39.87
VE-06-06
3/8
3/8
7.11
11/16
11/16
16.76
19.30
32.51
39.87
VE-06-08
3/8
1/2
7.11
7/8
11/16
16.76
19.30
38.86
46.22
VE-06-12
3/8
3/4
7.11
1-1/16
11/16
16.76
19.30
40.38
47.75
VE-08-02
1/2
1/8
4.82
13/16
7/8
22.86
21.84
28.70
38.86
VE-08-04
1/2
1/4
7.11
13/16
7/8
22.86
21.84
33.27
43.43
VE-08-06
1/2
3/8
9.65
13/16
7/8
22.86
21.84
33.27
43.43
VE-08-08
1/2
1/2
10.41
7/8
7/8
22.86
21.84
38.86
49.02
VE-08-12
1/2
3/4
10.41
1-1/16
7/8
22.86
21.84
40.38
50.54
VE-08-16
1/2
1
10.41
1-3/8
7/8
22.86
21.84
46.99
57.15
VE-10-06
5/8
3/8
9.65
15/16
1
24.38
21.84
34.03
44.19
VE-10-08
5/8
1/2
11.93
15/16
1
24.38
21.84
38.86
49.02
VE-10-12
5/8
3/4
12.70
1-1/16
1
24.38
21.84
40.38
50.54
VE-12-08
3/4
1/2
11.93
1-1/16
1-1/8
24.38
21.84
40.38
50.54
VE-12-12
3/4
3/4
15.74
1-1/16
1-1/8
24.38
21.84
40.38
50.54
VE-12-16
3/4
1
15.74
1-3/8
1-1/8
24.38
21.84
46.99
57.15
VE-14-12
7/8
3/4
15.74
1-3/16
1-1/4
25.90
21.84
40.38
50.54
VE-14-16
7/8
1
18.28
1-3/8
1-1/4
25.90
21.84
46.99
57.15
VE-16-08
1
1/2
11.93
1-3/8
1-1/2
31.24
26.41
45.21
57.40
VE-16-12
1
3/4
15.74
1-3/8
1-1/2
31.24
26.41
45.21
57.40
VE-16-16
1
1
22.35
1-3/8
1-1/2
31.24
26.41
50.03
62.23
