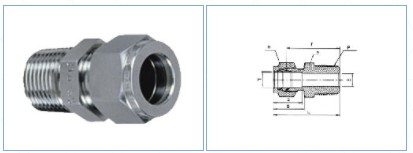

MALE CONNECTOR METRIC

Part No.

Tube O.D.
T mm
P
(NPT)
E
mm

h mm

H mm
F
G
l
L
VE-02-02 2 1/8 1.7 12 12 12.9 15.3 23.9 30.5
VE-03-02 3 1/8 2.4 12 12 12.9 15.3 23.1 29.7
VE-03-04 3 1/4 2.4 14 12 12.9 15.3 29.0 35.6
VE-04-02 4 1/8 2.4 12 12 13.7 16.1 24.6 31.2
VE-04-04 4 1/4 2.4 14 12 13.7 16.1 29.7 36.3
VE-06-02 6 1/8 4.8 14 14 15.3 17.7 25.4 32.8
VE-06-04 6 1/4 4.8 14 14 15.3 17.7 30.2 37.6
VE-06-06 6 3/8 4.8 17 14 15.3 17.7 31.0 38.4
VE-06-08 6 1/2 4.8 22 14 15.3 17.7 36.6 44.0
VE-08-02 8 1/8 4.8 15 16 16.2 18.6 26.7 34.2
VE-04-04 8 1/4 6.4 15 16 16.2 18.6 31.2 38.7
VE-08-06 8 3/8 6.4 17 16 16.2 18.6 31.8 39.2
VE-08-08 8 1/2 6.4 22 16 16.2 18.6 37.3 44.8
VE-10-02 10 1/8 4.8 18 19 17.2 19.5 28.7 36.3
VE-10-04 10 1/4 7.1 18 19 17.2 19.5 33.3 40.9
VE-10-06 10 3/8 7.9 18 19 17.2 19.5 33.3 40.9
VE-10-08 10 1/2 7.9 22 19 17.2 19.5 38.1 45.7
VE-12-04 12 1/4 7.1 22 22 22.8 22.0 33.3 43.4
VE-12-06 12 3/8 9.5 22 22 22.8 22.0 33.3 43.4
VE-12-08 12 1/2 9.5 22 22 22.8 2.0 38.1 48.2
VE-12-12 12 3/4 9.5 27 22 22.8 22.0 38.9 49.0
VE-15-08 15 1/2 11.9 24 25 24.4 22.0 38.9 49.0
VE-16-04 16 1/4 7.1 24 25 24.4 22.0 34.0 44.1
VE-16-06 16 3/8 9.5 24 25 24.4 22.0 34.0 44.1
VE-16-08 16 1/2 11.9 24 25 24.4 22.0 38.9 49.0
VE-16-12 16 3/4 12.7 27 25 24.4 22.0 38.9 49.0
VE-18-08 18 1/2 11.9 27 30 24.4 22.0 40.4 50.5
VE-18-12 18 3/4 15.1 27 30 24.4 22.0 40.4 50.5
VE-20-08 20 1/2 11.9 30 32 26.0 22.0 42.2 52.3
VE-20-12 20 3/4 15.9 30 32 26.0 22.0 42.2 52.3
VE-22-12 22 3/4 15.9 30 32 26.0 22.0 42.2 52.3
VE-22-16 22 1 18.3 35 32 26.0 22.0 47.8 57.9
VE-25-12 25 3/4 15.9 35 38 31.3 26.5 45.2 57.5
VE-25-16 25 1 21.8 35 38 31.3 26.5 50.0 62.3
