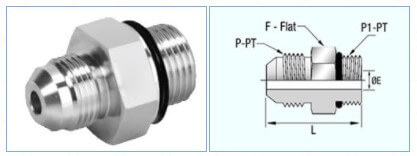

Male Connectors SAE 070120
MALE CONNECTORS SAE 070120
| Part No | Tube OD (P-PT) | (P1-PT) SAE / MS | Dimensions | |||
| inch | mm | L | E | F | ||
| VE-2J-5S-SS | 1/8 | 3 | 5/16-24 | 26.90 | 1.60 | 11.10 |
| VE-3J-6S-SS | 3/16 | 4 | 3/8-24 | 27.90 | 3.20 | 12.70 |
| VE-4J-7S-SS | 1/4 | 6 | 7/16-20 | 31.20 | 4.40 | 14.30 |
| VE-4J-8S-SS | 1/4 | 6 | 1/2-20 | 31.20 | 4.40 | 15.90 |
| VE-4J-9S-SS | 1/4 | 6 | 9/16-18 | 33.00 | 4.40 | 17.50 |
| VE-4J-12S-SS | 1/4 | 6 | 3/4-16 | 34.80 | 4.40 | 22.20 |
| VE-5J-8S-SS | 5/16 | 8 | 1/2-20 | 31.20 | 6.00 | 15.90 |
| VE-6J-9S-SS | 3/8 | 10 | 9/16-18 | 33.00 | 7.50 | 17.50 |
| VE-6J-12S-SS | 3/8 | 10 | 3/4-16 | 35.10 | 7.50 | 22.20 |
| VE-6J-14S-SS | 3/8 | 10 | 7/8-14 | 38.10 | 7.50 | 25.40 |
| VE-8J-9S-SS | 1/2 | 12 | 9/16-18 | 36.60 | 7.50 | 20.60 |
| VE-8J-12S-SS | 1/2 | 12 | 3/4-16 | 37.60 | 9.90 | 22.20 |
| VE-8J-14S-SS | 1/2 | 12 | 7/8-14 | 40.60 | 9.90 | 25.40 |
| VE-8J-17S-SS | 1/2 | 12 | 1 1/16-12 | 44.70 | 9.90 | 31.80 |
| VE-10J-12S-SS | 5/8 | 16 | 3/4-16 | 40.60 | 10.70 | 23.80 |
| VE-10J-14S-SS | 5/8 | 16 | 7/8-14 | 43.20 | 12.30 | 25.40 |
| VE-10J-17S-SS | 5/8 | 16 | 1 1/16-12 | 47.20 | 12.30 | 31.80 |
| VE-12J-12S-SS | 3/4 | 18 | 3/4-16 | 45.20 | 10.70 | 28.60 |
| VE-12J-14S-SS | 3/4 | 18 | 7/8-14 | 46.40 | 12.70 | 28.60 |
| VE-12J-17S-SS | 3/4 | 18 | 1 1/16-12 | 50.00 | 15.50 | 31.80 |
| VE-12J-21S-SS | 3/4 | 18 | 1 5/16-12 | 50.80 | 15.50 | 38.10 |
| VE-14J-19S-SS | 7/8 | 22 | 1 3/16-12 | 50.50 | 18.30 | 34.90 |
| VE-14J-21S-SS | 7/8 | 22 | 1 5/16-12 | 51.30 | 18.30 | 38.10 |
| VE-16J-17S-SS | 1 | 25 | 1 1/16-12 | 51.10 | 16.70 | 34.90 |
| VE-16J-19S-SS | 1 | 25 | 1 3/16-12 | 51.80 | 18.30 | 34.90 |
| VE-16J-21N-SS | 1 | 25 | 1 5/16-12 | 51.80 | 21.50 | 38.10 |
