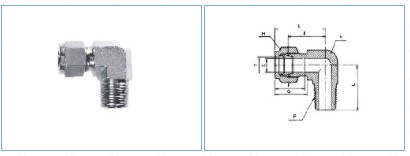

MALE ELBOW IMPERIAL

Part No. Tube O.D. T Pipe Weld Size
P 		E
Min 		h H F G l l1 L
in Nom O.D. in in
VE-02-02
1/8
1/8
10.30
2.28
7/16
7/16
12.70
15.24
23.87
9.65
31.24
VE-03-02
3/16
1/8
10.30
3.04
7/16
1/2
13.71
16.0
24.63
9.65
31.24
VE-04-02
1/4
1/8
10.30
4.82
1/2
9/16
15.24
17.78
25.40
9.65
32.76
VE-04-04
1/4
1/4
13.70
4.82
9/16
9/16
15.24
17.78
30.48
14.22
37.84
VE-05-02
5/16
1/8
10.30
5.08
9/16
5/8
16.25
18.54
26.67
9.65
37.03
VE-05-04
5/16
1/4
13.70
6.35
9/16
5/8
16.25
18.54
31.24
14.22
38.60
VE-06-04
3/8
1/4
13.70
7.11
5/8
11/16
16.76
19.30
32.51
14.22
39.87
VE-06-06
3/8
3/8
17.10
7.11
11/16
11/16
16.76
19.30
32.51
11.05
39.87
VE-06-08
3/8
1/2
21.30
7.11
7/8
11/16
16.76
19.30
38.86
14.22
43.23
VE-08-06
1/2
3/8
17.10
10.41
13/16
7/8
22.86
21.84
33.27
19.05
43.43
VE-08-08
1/2
1/2
21.30
10.41
7/8
7/8
22.86
21.84
38.86
14.22
49.02
VE-08-12
1/2
3/4
26.67
10.41
1-1/16
7/8
22.86
21.84
40.38
19.05
50.54
VE-10-08
5/8
1/2
21.30
12.70
15/16
1
24.38
21.84
38.66
19.05
49.02
VE-12-12
3/4
3/4
26.67
15.74
1-1/16
1-1/8
24.38
21.84
40.38
19.05
50.54
VE-16-16
1
1
33.40
22.35
1-3/8
1-1/2
31.24
26.41
50.03
23.87
62.23
