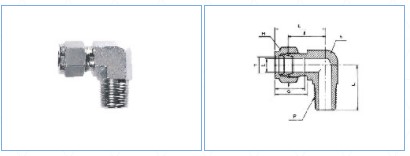

MALE ELBOW METRIC

Part No.

Tube O.D.
T  mm
P
(NPT)
E
mm

h mm

H mm
F
G
l
L
L1
VE-M03-02 3 1/8 2.4 12.7 12 12.9 15.3 17.0 23.6 17.8
VE-M03-04 3 1/4 2.4 12.7 12 12.9 15.3 18.0 24.6 23.4
VE-M04-02 4 1/8 2.4 12.7 12 13.7 16.1 18.8 25.4 18.8
VE-M04-04 4 1/4 2.4 12.7 12 13.7 16.1 18.8 25.4 23.4
VE-M06-02 6 1/8 4.8 12.7 14 15.3 17.7 19.6 27.0 18.8
VE-M06-04 6 1/4 4.8 12.7 14 15.3 17.7 19.6 27.0 23.4
VE-M06-06 6 3/8 4.8 17.5 14 15.3 17.7 22.4 29.8 26.2
VE-M06-08 6 1/2 4.8 20.6 14 15.3 17.7 24.4 31.8 33.0
VE-M08-02 8 1/8 4.8 14.3 16 16.2 18.6 21.3 28.8 19.8
VE-M08-04 8 1/4 6.4 14.3 16 16.2 18.6 21.3 28.8 24.4
VE-M08-06 8 3/8 6.4 17.5 16 16.2 18.6 23.9 31.4 28.5
VE-M08-08 8 1/2 6.4 20.6 16 16.2 18.6 25.1 32.6 33.0
VE-M10-02 10 1/8 4.8 17.5 19 17.2 19.5 23.9 31.5 23.6
VE-M10-04 10 1/4 7.1 17.5 19 17.2 19.5 23.9 31.5 28.2
VE-M10-06 10 3/8 7.9 17.5 19 17.2 19.5 25.9 31.5 28.2
VE-M10-08 10 1/2 7.9 20.6 19 17.2 19.5 25.9 33.5 33.0
VE-M12-02 12 1/8 4.8 20.6 22 22.8 22.00 25.9 36.0 23.6
VE-M12-04 12 1/4 7.1 20.6 22 22.8 22.00 25.9 36.0 28.2
VE-M12-06 12 3/8 9.5 20.6 22 22.8 22.00 25.9 36.0 28.2
VE-M12-08 12 1/2 9.5 20.6 22 22.8 22.00 29.7 36.0 33.0
VE-M12-12 12 3/4 9.5 27.0 22 22.8 22.00 27.9 39.8 36.8
VE-M16-06 16 3/8 9.5 25.4 25 24.4 22.00 27.9 38.0 30.2
VE-M16-08 16 1/2 11.9 25.4 25 24.4 22.00 29.7 38.0 35.1
VE-M16-12 16 3/4 12.7 27.0 25 24.4 22.00 29.7 39.8 36.8
VE-M18-08 18 1/2 11.9 27.0 30 24.4 22.00 29.7 39.8 36.8
VE-M18-12 18 3/4 15.1 27.0 30 24.4 22.00 29.7 39.8 36.8
VE-M20-08 20 1/2 11.9 31.8 32 26.0 22.00 34.5 44.6 41.7
VE-M20-12 20 3/4 15.9 31.8 32 26.0 22.00 34.5 44.6 41.7
VE-M22-12 22 3/4 15.9 31.8 32 26.0 22.00 34.5 44.6 41.7
VE-M22-16 22 1 18.3 36.0 32 26.0 22.00 34.5 44.6 46.5
VE-M25-12 25 3/4 15.9 36.0 38 31.3 26.5 36.8 49.1 41.7
VE-M25-16 25 1 21.8 36.0 38 31.3 26.5 36.8 49.1 46.5
