Venus Engineers - Instrumentation Tube Fittings

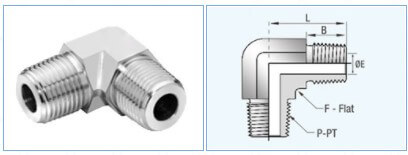

Part No	Pipe Size	Dimensions
Part No	P-PT, NPT	L	F	B	E
VE-1N-SS	1/16	18.30	9.50	9.70	3.00
VE-2N-SS	1/8	22.40	11.10	9.70	4.80
VE-4N-SS	1/4	26.70	12.70	14.20	7.10
VE-6N-SS	3/8	29.70	17.50	14.20	9.60
VE-8N-SS	1/2	36.80	20.60	19.10	11.90
VE-12N-SS	3/4	40.40	27.00	19.10	15.70
VE-16N-SS	1	50.00	34.90	23.90	22.40
