Venus Engineers - Instrumentation Tube Fittings

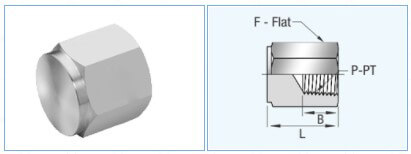

Part No	Pipe Size	Dimensions
Part No	P-PT, NPT	L	F	B
VE-1N-SS	1/16	12.70	11.10	9.90
VE-2N-SS	1/8	19.10	14.30	10.40
VE-4N-SS	1/4	23.10	19.10	15.00
VE-6N-SS	3/8	26.20	22.20	15.00
VE-8N-SS	1/2	34.00	27.00	19.80
VE-12N-SS	3/4	36.60	33.30	20.60
VE-16N-SS	1	41.10	41.30	25.40
