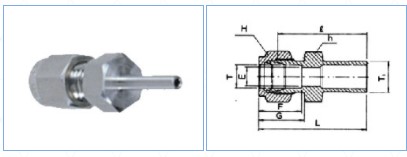

Reducer Metric

Part No.
Tube O.D.
E
mm
h mm
H mm
F
G

l

L
T mm
T1mm
VE-M03-M04 3 4 2.4 12 12 12.9 15.3 28.4 35.0
VE-M03-M06 3 6 2.4 12 12 12.9 15.3 29.5 36.1
VE-M03-M10 3 10 2.4 12 12 12.9 15.3 31.8 38.4
VE-M04-M06 4 6 2.4 12 12 13.7 16.1 30.5 37.1
VE-M06-M03 6 3 1.8 14 14 15.3 17.7 29.5 36.9
VE-M06-M08 6 8 4.8 14 14 15.3 17.7 32.5 39.9
VE-M06-M10 6 10 4.8 14 14 15.3 17.7 33.3 40.7
VE-M06-M12 6 12 4.8 14 14 15.3 17.7 28.9 46.3
VE-M08-M06 8 6 4.6 15 16 16.2 18.6 32.8 40.3
VE-M08-M10 8 10 6.4 15 16 16.2 18.6 34.5 42.0
VE-M08-M12 8 12 6.4 15 16 16.2 18.6 40.1 47.6
VE-M10-M06 10 6 4.6 18 19 17.2 19.5 34.8 42.4
VE-M10-M12 10 12 7.9 18 19 17.2 19.5 42.2 49.8
VE-M10-M15 10 15 7.9 18 19 17.2 19.5 43.7 51.3
VE-M10-M18 10 18 7.9 19 19 17.2 19.5 43.7 51.3
VE-M12-M06 12 6 4.6 22 22 22.8 22.0 34.8 44.9
VE-M12-M10 12 10 7.7 22 22 22.8 22.0 36.6 46.7
VE-M12-M16 12 16 9.5 22 22 22.8 22.0 43.7 53.8
VE-M12-M18 12 18 9.5 22 22 22.8 22.0 43.7 53.8
VE-M12-M20 12 20 9.5 22 22 22.8 22.0 46.0 56.1
VE-M12-M22 12 22 9.5 24 22 22.8 22.0 46.0 56.1
VE-M12-M25 12 25 9.5 27 22 22.8 22.0 52.3 62.4
VE-M16-M12 16 12 9.1 24 25 24.4 22.0 42.9 53.0
VE-M18-M12 18 12 9.1 27 30 24.4 22.0 44.5 54.6
VE-M18-M16 18 16 12.7 27 30 24.4 22.0 46.0 56.1
VE-M18-M20 18 20 15.1 27 30 24.4 22.0 47.5 57.6
VE-M18-M22 18 22 15.1 27 30 24.4 22.0 47.5 57.6
VE-M18-M25 18 25 15.1 27 30 24.4 22.0 52.3 62.4
VE-M20-M16 20 16 12.7 30 32 24.4 22.0 47.8 57.9
VE-M20-M18 20 18 13.9 30 32 26.0 22.0 47.8 57.9
VE-M20-M22 20 22 15.8 30 32 26.0 22.0 49.3 59.4
VE-M20-M25 20 25 15.8 30 32 26.0 22.0 54.1 64.2
VE-M22-M18 22 18 13.9 30 32 26.0 22.0 47.8 57.9
VE-M22-M20 22 20 15.1 30 32 26.0 22.0 49.3 59.4
VE-M22-M25 22 25 18.3 30 32 26.0 22.0 54.1 64.2
VE-M25-M18 25 18 13.9 35 38 31.3 26.5 50.8 63.1
VE-M25-M20 25 20 15.1 35 38 31.3 26.5 52.3 64.6
