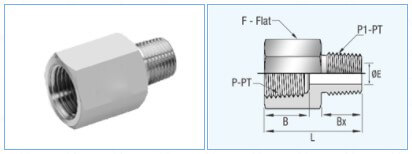

REDUCING ADAPTERS - NPT
REDUCING ADAPTERS - NPT
| PART NO. | Pipe Size | Dimensions | |||||
| P-PT, NPT | P1-PT, NPT | L | F | B | BX | E | |
| VE-2N-1N-SS | 1/8 | 1/16 | 27.70 | 14.30 | 10.40 | 9.70 | 3.00 |
| VE-4N-1N-SS | 1/4 | 1/16 | 30.50 | 19.10 | 15.00 | 9.70 | 3.00 |
| VE-4N-2N-SS | 1/4 | 1/8 | 32.00 | 19.10 | 15.00 | 9.70 | 4.80 |
| VE-6N-1N-SS | 3/8 | 1/16 | 31.80 | 22.20 | 15.00 | 9.70 | 3.00 |
| VE-6N-2N-SS | 3/8 | 1/8 | 33.80 | 22.20 | 15.00 | 9.70 | 4.80 |
| VE-6N-4N-SS | 3/8 | 1/4 | 38.10 | 22.20 | 15.00 | 14.20 | 7.10 |
| VE-8N-2N-SS | 1/2 | 1/8 | 40.00 | 27.00 | 19.80 | 9.70 | 4.80 |
| VE-8N-4N-SS | 1/2 | 1/4 | 44.70 | 27.00 | 19.80 | 14.20 | 7.10 |
| VE-8N-6N-SS | 1/2 | 3/8 | 44.40 | 27.00 | 19.80 | 14.20 | 9.60 |
| PRAl2N-2N-SS | 3/4 | 1/8 | 39.60 | 33.30 | 20.60 | 9.70 | 4.80 |
| VE-12N-4N-SS | 3/4 | 1/4 | 47.00 | 33.30 | 20.60 | 14.20 | 7.10 |
| VE-12N-6N-SS | 3/4 | 3/8 | 46.20 | 33.30 | 20.60 | 14.20 | 9.60 |
| VE-12N-8N-SS | 3/4 | 1/2 | 51.30 | 33.30 | 20.60 | 19.10 | 11.90 |
| VE-16N-2N-SS | 1 | 1/8 | 46.00 | 41.30 | 25.40 | 9.70 | 4.80 |
| VE-16N-4N-SS | 1 | 1/4 | 49.80 | 41.30 | 25.40 | 14.20 | 7.10 |
| VE-16N-6N-SS | 1 | 3/8 | 50.80 | 41.30 | 25.40 | 14.20 | 9.60 |
| VE-16N-8N-SS | 1 | 1/2 | 54.90 | 41.30 | 25.40 | 19.10 | 11.90 |
| VE-16N-12N-SS | 1 | 3/4 | 55.10 | 41.30 | 25.40 | 19.10 | 15.70 |
| VE-20N-12N-SS | 1 1/4 | 1.00 | 62.70 | 54.00 | 25.40 | 23.90 | 22.40 |
