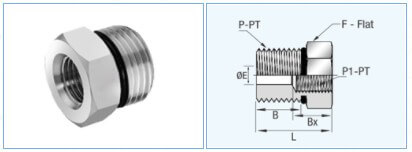

REDUCING BUSHING - SAE / MS STRAIGHT
REDUCING BUSHING - SAE / MS STRAIGHT
| PART NO. | Pipe Size | Dimensions | |||||
| P-PT, SAE | P1-PT, SAE | L | F | B | Bx | E | |
| VE-9S-7S-SS | 9/16-18 | 7/16-20 | 28.40 | 20.60 | 9.90 | 14.00 | 7.10 |
| VE-12S-7S-SS | 3/4''-16 | 7/16-20 | 24.90 | 22.20 | 11.20 | 14.00 | 9.90 |
| VE-12S-9S-SS | 3/4''-16 | 9/16-18 | 30.20 | 25.40 | 11.20 | 16.00 | 10.70 |
| VE-7S-9S-SS | 7/8''-14 | 9/16-18 | 27.90 | 25.40 | 12.70 | 16.00 | 12.70 |
| VE-7S-12S-SS | 7/8''-14 | 3/4''-16 | 36.10 | 30.20 | 12.70 | 18.00 | 12.70 |
| VE-17S-12S-SS | 1-1/16-12 | 3/4''-16 | 32.30 | 31.80 | 15.00 | 18.00 | 16.50 |
| VE-21S-17S-SS | 1 5/16-12 | 1-1/16-12 | 40.90 | 41.30 | 15.00 | 24.00 | 22.10 |
| VE-26S-21S-SS | 1 5/8-12 | 1 5/16-12 | 50.30 | 54.00 | 15.00 | 24.00 | 27.70 |
| VE-30S-21S-SS | 1 7/8-12 | 1 5/16-12 | 50.30 | 54.00 | 15.00 | 24.00 | 31.20 |
