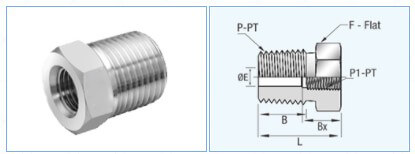

REDUCING BUSHING - NPT
REDUCING BUSHING - NPT
| PART NO. | PIPE SIZE | DIMENSION | |||||
| P-PT, NPT | P1-PT, NPT | L | F | B | Bx | E | |
| VE-2N-1N-SS | 1/8 | 1/16 | 26.20 | 11.10 | 9.70 | 9.90 | 4.80 |
| VE-4N-1N-SS | 1/4 | 1/16 | 21.80 | 14.30 | 14.20 | 9.90 | 4.80 |
| VE-4N-2N-SS | 1/4 | 1/8 | 26.90 | 14.30 | 14.20 | 10.40 | 7.10 |
| VE-6N-1N-SS | 3/8 | 1/16 | 21.80 | 17.50 | 14.20 | 9.90 | 4.80 |
| VE-6N-2N-SS | 3/8 | 1/8 | 21.80 | 17.50 | 14.20 | 10.40 | 7.10 |
| VE-6N-4N-SS | 3/8 | 1/4 | 30.20 | 19.10 | 14.20 | 15.00 | 9.70 |
| VE-8N-2N-SS | 1/2 | 1/8 | 27.40 | 22.20 | 19.10 | 10.40 | 7.10 |
| VE-8N-4N-SS | 1/2 | 1/4 | 27.40 | 22.20 | 19.10 | 15.00 | 10.40 |
| VE-8N-6N-SS | 1/2 | 3/8 | 35.80 | 22.20 | 19.10 | 15.00 | 11.90 |
| VE-12N-2N-SS | 3/4 | 1/8 | 27.40 | 27.00 | 19.10 | 10.40 | 7.10 |
| VE-12N-4N-SS | 3/4 | 1/4 | 27.40 | 27.00 | 19.10 | 15.00 | 10.40 |
| VE-12N-6N-SS | 3/4 | 3/8 | 27.40 | 27.00 | 19.10 | 15.00 | 12.70 |
| VE-12N-8N-SS | 3/4 | 1/2 | 41.40 | 27.00 | 19.10 | 19.80 | 15.70 |
| VE-16N-2N-SS | 1 | 1/8 | 34.50 | 34.90 | 23.90 | 10.40 | 7.10 |
| VE-16N-4N-SS | 1 | 1/4 | 34.8 | 34.90 | 23.9 | 15.00 | 10.4 |
| VE-16N-6N-SS | 1 | 3/8 | 34.80 | 34.90 | 23.90 | 15.00 | 12.70 |
| VE-16N-8N-SS | 1 | 1/2 | 34.80 | 34.90 | 23.90 | 19.80 | 15.70 |
| VE-16N-12N-SS | 1 | 3/4 | 47.00 | 34.90 | 23.90 | 20.60 | 22.40 |
