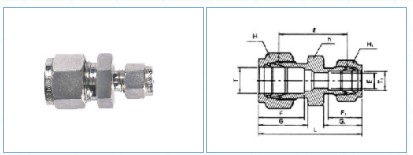

REDUCING UNION IMPERIAL

Part No.
Tube O.D.
E
Min
h in
H in
H1 in
F
F1
G
G1
l
L
T in
T1 in
VE-02-01 1/8 1/6 1.27 7/16 7/16 5/16 12.7 8.63 15.24 10.92 20.60 30.91
VE-03-02
3/16
1/8
2.28
7/16
1/2
7/16
13.71
12.70
16.00
15.24
23.36
36.57
VE-04-02
1/4
1/8
2.28
1/2
9/16
7/16
15.24
12.70
17.78
15.24
24.63
38.60
VE-04-03
1/4
3/16
3.04
1/2
9/16
1/2
15.24
13.71
17.78
16.00
25.40
39.37
VE-05-02
5/16
1/8
2.28
9/16
5/8
7/16
16.25
12.70
18.54
15.24
25.90
39.87
VE-05-04
5/16
1/4
4.82
9/16
11/16
9/16
16.25
15.24
18.54
17.78
27.43
42.16
VE-06-02
3/8
1/8
2.28
5/8
11/16
7/16
16.76
12.70
19.30
15.24
26.92
40.89
VE-06-04
3/8
1/4
4.82
5/8
11/16
9/16
16.76
15.24
19.30
17.78
28.44
43.18
VE-06-05
3/8
5/16
6.35
5/8
7/8
5/8
16.76
16.25
19.30
18.54
29.46
44.19
VE-08-02
1/2
1/8
2.28
13/16
7/8
7/16
22.86
12.70
21.84
15.24
28.44
45.21
VE-08-04
1/2
1/4
4.82
13/16
7/8
9/16
22.86
15.24
21.84
17.78
29.46
46.99
VE-08-06
1/2
3/8
7.11
13/16
1
11/16
22.86
16.76
17.78
19.30
30.98
48.51
VE-10-06
5/8
3/8
7.11
15/16
1
11/16
24.38
16.76
21.84
19.30
31.75
49.27
VE-10-08
5/8
1/2
10.41
15/16
1-1/8
7/8
24.38
22.86
21.84
21.84
31.75
52.07
VE-12-04
3/4
1/4
12.70
1-1/16
1-1/8
9/16
24.38
15.24
21.84
17.78
31.75
49.27
VE-12-06
3/4
3/8
7.11
1-1/16
1-1/8
11/16
24.38
16.76
21.84
19.30
33.27
50.80
VE-12-08
3/4
1/2
10.41
1-1/16
1-1/8
7/8
24.38
22.86
21.84
21.84
33.27
53.59
VE-12-10
3/4
5/8
12.70
1-1/16
1-1/8
1
24.38
24.38
21.84
21.84
33.27
53.59
VE-16-08
1
1/2
10.41
1-3/8
1-1/2
7/8
31.24
22.86
26.41
21.84
40.89
63.24
VE-16-12
1
3/4
19.05
1-3/8
1-1/2
1-1/8
31.24
24.38
26.41
21.84
40.38
62.73
