Reducing Union Metric

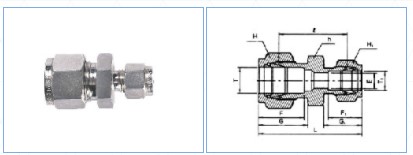

REDUCING UNION METRIC
|
|
|
mm |
|
|
|
|
|
|
|
l |
L |
|
| T mm |
T1 mm |
|||||||||||
| VE-M06-03 | 6 | 3 | 2.4 | 14 | 14 | 12 | 15.3 | 12.9 | 17.7 | 15.3 | 24.6 | 38.6 |
| VE-M06-04 | 6 | 4 | 2.4 | 14 | 14 | 12 | 15.3 | 13.7 | 17.7 | 16.1 | 25.4 | 39.4 |
| VE-M08-06 | 8 | 6 | 4.8 | 15 | 16 | 14 | 16.2 | 15.3 | 18.6 | 17.7 | 27.4 | 42.3 |
| VE-M10-06 | 10 | 6 | 4.8 | 18 | 19 | 14 | 17.2 | 15.3 | 19.5 | 17.7 | 29.5 | 44.5 |
| VE-M10-08 | 10 | 8 | 6.4 | 18 | 19 | 16 | 17.2 | 16.2 | 19.5 | 18.6 | 30.0 | 45.1 |
| VE-M12-06 | 12 | 6 | 4.8 | 22 | 22 | 14 | 22.8 | 15.3 | 22.0 | 17.7 | 29.5 | 47.0 |
| VE-M-12-08 | 12 | 8 | 6.4 | 22 | 22 | 16 | 22.8 | 16.2 | 22.0 | 18.6 | 30.2 | 47.8 |
| VE-M12-10 | 12 | 10 | 7.9 | 22 | 22 | 19 | 22.8 | 17.2 | 22.0 | 19.5 | 31.0 | 48.7 |
| VE-M16-12 | 16 | 12 | 9.5 | 24 | 25 | 22 | 24.4 | 22.8 | 22.0 | 22.0 | 31.8 | 52.0 |
| VE-M25-18 | 25 | 18 | 15.1 | 35 | 38 | 30 | 31.3 | 24.4 | 26.5 | 22.0 | 38.6 | 61.0 |
| VE-M25-20 | 25 | 20 | 15.9 | 35 | 38 | 32 | 31.3 | 26.0 | 26.5 | 22.0 | 39.9 | 62.3 |
