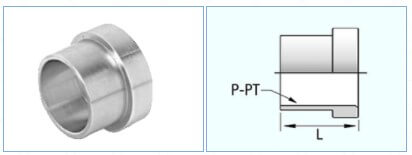

Sleeves SAE 070115
SLEEVES SAE 070115
| Part No | Part No | Tube OD (P-PT) | Dimensions | |
| (inch) | (mm) | inch | mm | L |
| VE-2J-SS | VE-3M-SS | 1/8 | 3.00 | 8.60 |
| VE-3J-SS | VE-4M-SS | 3/16 | 4.00 | 8.60 |
| VE-4J-SS | VE-6M-SS | 1/4 | 6.00 | 10.40 |
| VE-5J-SS | VE-8M-SS | 5/16 | 8.00 | 11.20 |
| VE-6J-SS | VE-10M-SS | 3/8 | 10.00 | 12.70 |
| VE-8J-SS | VE-12M-SS | 1/2 | 12.00 | 14.20 |
| VE-10J-SS | VE-16M-SS | 5/8 | 16.00 | 16.80 |
| VE-12J-SS | VE-18M-SS | 3/4 | 18.00 | 17.30 |
| VE-14J-SS | VE-22M-SS | 7/8 | 22.00 | 19.30 |
| VE-16J-SS | VE-25M-SS | 1 | 25.00 | 19.80 |
| VE-20J-SS | VE-32M-SS | 1 1/4 | 32.00 | 23.10 |
| VE-24J-SS | VE-38M-SS | 1 1/2 | 38.00 | 28.40 |
| VE-32J-SS | VE-50M-SS | 2 | 50.00 | 30.20 |
