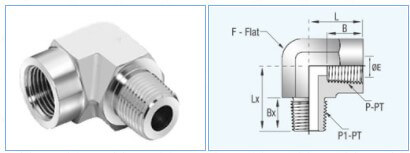

STREET ELBOW - NPT
STREET ELBOW - NPT
| Part No | Pipe Size | Dimensions | ||||||
| P-PT, NPT | P1-PT, NPT | L | F | B | E | Lx | BX | |
| VE-1N-SS | 1/16 | 1/16 | 21.80 | 11.10 | 9.90 | 3.00 | 22.40 | 9.70 |
| VE-1N-2N-SS | 1/16 | 1/8 | 21.80 | 11.10 | 9.90 | 4.80 | 22.40 | 9.70 |
| VE-1N-4N-SS | 1/16 | 1/4 | 22.40 | 14.30 | 9.90 | 4.80 | 27.70 | 14.20 |
| VE-1N-6N-SS | 1/16 | 3/8 | 22.40 | 17.50 | 9.90 | 4.80 | 29.70 | 14.20 |
| VE-2N-1N-SS | 1/8 | 1/16 | 26.40 | 12.70 | 10.40 | 3.00 | 22.10 | 9.70 |
| VE-2N-SS | 1/8 | 1/8 | 26.40 | 12.70 | 10.40 | 4.80 | 22.10 | 9.70 |
| VE-2N-4N-SS | 1/8 | 1/4 | 22.40 | 14.30 | 10.40 | 7.10 | 27.70 | 14.20 |
| VE-2N-6N-SS | 1/8 | 3/8 | 22.40 | 17.50 | 10.40 | 7.10 | 29.70 | 14.20 |
| VE-2N-8N-SS | 1/8 | 1/2 | 24.10 | 20.60 | 10.40 | 7.10 | 36.80 | 19.10 |
| VE-2N-12N-SS | 1/8 | 3/4 | 25.40 | 27.00 | 10.40 | 7.10 | 40.40 | 19.10 |
| VE-2N-16N-SS | 1/8 | 1.00 | 26.40 | 34.90 | 10.40 | 7.10 | 50.00 | 23.90 |
| VE-4N-2N-SS | 1/4 | 1/8 | 29.70 | 17.50 | 15.00 | 4.80 | 25.40 | 9.70 |
| VE-4N-SS | 1/4 | 1/4 | 29.70 | 17.50 | 15.00 | 7.10 | 29.70 | 14.20 |
| VE-4N-6N-SS | 1/4 | 3/8 | 29.70 | 17.50 | 15.00 | 8.60 | 29.70 | 14.20 |
| VE-4N-8N-SS | 1/4 | 1/2 | 25.40 | 20.60 | 15.00 | 8.60 | 36.80 | 19.10 |
| VE-4N-12N-SS | 1/4 | 3/4 | 25.40 | 27.00 | 15.00 | 8.60 | 40.40 | 19.10 |
| VE-4N-16N-SS | 1/4 | 1.00 | 41.40 | 34.90 | 15.00 | 8.60 | 50.00 | 23.90 |
| VE-6N-4N-SS | 3/8 | 1/4 | 36.10 | 20.60 | 15.00 | 7.10 | 32.00 | 14.20 |
| VE-6N-SS | 3/8 | 3/8 | 36.10 | 20.60 | 15.00 | 9.60 | 32.00 | 14.20 |
| VE-6N-8N-SS | 3/8 | 1/2 | 36.10 | 20.60 | 15.00 | 11.90 | 36.80 | 19.10 |
| VE-6N-12N-SS | 3/8 | 3/4 | 31.20 | 27.00 | 15.00 | 11.90 | 40.40 | 19.10 |
| VE-6N-16N-SS | 3/8 | 1.00 | 41.40 | 34.90 | 15.00 | 11.90 | 50.00 | 23.90 |
| VE-8N-4N-SS | 1/2 | 1/4 | 39.60 | 25.40 | 19.80 | 7.10 | 35.10 | 14.20 |
| VE-8N-6N-SS | 1/2 | 3/8 | 39.60 | 25.40 | 19.80 | 9.60 | 35.10 | 14.20 |
| VE-8N-SS | 1/2 | 1/2 | 39.60 | 25.40 | 19.80 | 11.90 | 39.60 | 19.10 |
| VE-8N-12N-SS | 1/2 | 3/4 | 31.20 | 27.00 | 19.80 | 15.70 | 40.40 | 19.10 |
| VE-8N-16N-SS | 1/2 | 1.00 | 41.40 | 34.90 | 19.80 | 15.70 | 50.00 | 23.90 |
| VE-12N-SS | 3/4 | 3/4 | 48.80 | 31.80 | 20.60 | 15.70 | 42.40 | 19.10 |
| VE-12N-16N-SS | 3/4 | 1.00 | 41.40 | 34.90 | 20.60 | 22.40 | 50.00 | 23.90 |
| VE-16N-SS | 1 | 1.00 | 48.50 | 42.90 | 25.40 | 22.40 | 49.30 | 23.90 |
| VE-20N-SS | 11/4 | 11/4 | 60.50 | 50.80 | 25.40 | 31.80 | 60.50 | 23.90 |
