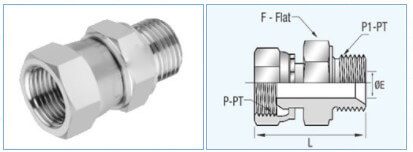

SWIVEL CONNECTOR ISO PARALLE
SWIVEL CONNECTOR ISO PARALLE
| Part No | Pipe Size | Dimensions | |||
| P-PT, BSPP | P1 PT, BSPP | L | F | E | |
| VE-4G-SWL-SS | 1/4 | 1/4 | 36.60 | 19.00 | 4.70 |
| VE-4G-6G-SWL-SS | 1/4 | 3/8 | 38.50 | 22.00 | 4.70 |
| VE-4G-8G-SWL-SS | 1/4 | 1/2 | 42.00 | 27.00 | 4.70 |
| VE-6G-4G-SWL-SS | 3/8 | 1/4 | 38.3 40.0 | 22.00 | 4.70 |
| VE-6G-SWL-SS | 3/8 | 3/8 | 22.00 | 7.90 | |
| VE-6G-8G-SWL-SS | 3/8 | 1/2 | 43.60 | 27.00 | 7.90 |
| VE-8G-6G-SWL-SS | 1/2 | 3/8 | 43.50 | 27.00 | 7.90 |
| VE-8G-SWL-SS | 1/2 | 1/2 | 46.10 | 27.00 | 11.10 |
| VE-8G-12G-SWL-SS | 1/2 | 3/4 | 48.00 | 32.00 | 11.10 |
| VE-12G-8G-SWL-SS | 3/4 | 1/2 | 48.60 | 32.00 | 11.10 |
| VE-12G-SWL-SS | 3/4 | 3/4 | 50.00 | 32.00 | 16.70 |
| VE-12G-16G-SWL-SS | 3/4 | 1.00 | 54.30 | 41.00 | 16.70 |
| VE-16G-SWL-SS 1 | 1 | 1.00 | 57.30 | 41.00 | 22.20 |
